Hospital Emergency Transfer Trolley Clinical Manual Transfer Cart
Publish time 2023-04-18 13:11

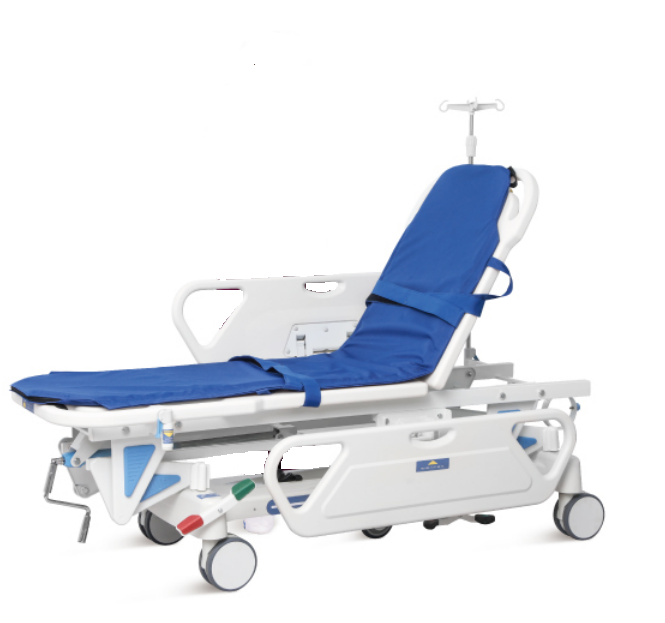

Hospital Emergency Transfer Trolley Clinical Manual Transfer Cart
SLB041-A
transfer trolley
Product Description
| Important Quality Control |

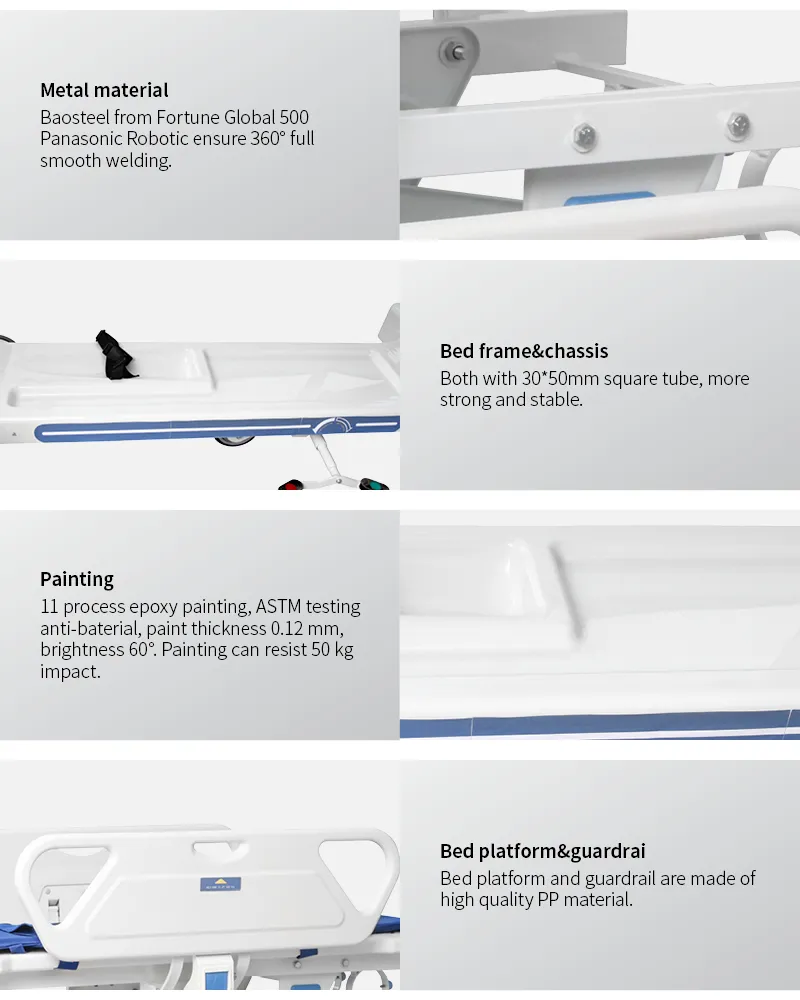

| * Baosteel from Fortune Global 500 |
| * Panasonic Robotic ensure |
| * 360° full smooth wedlding" |

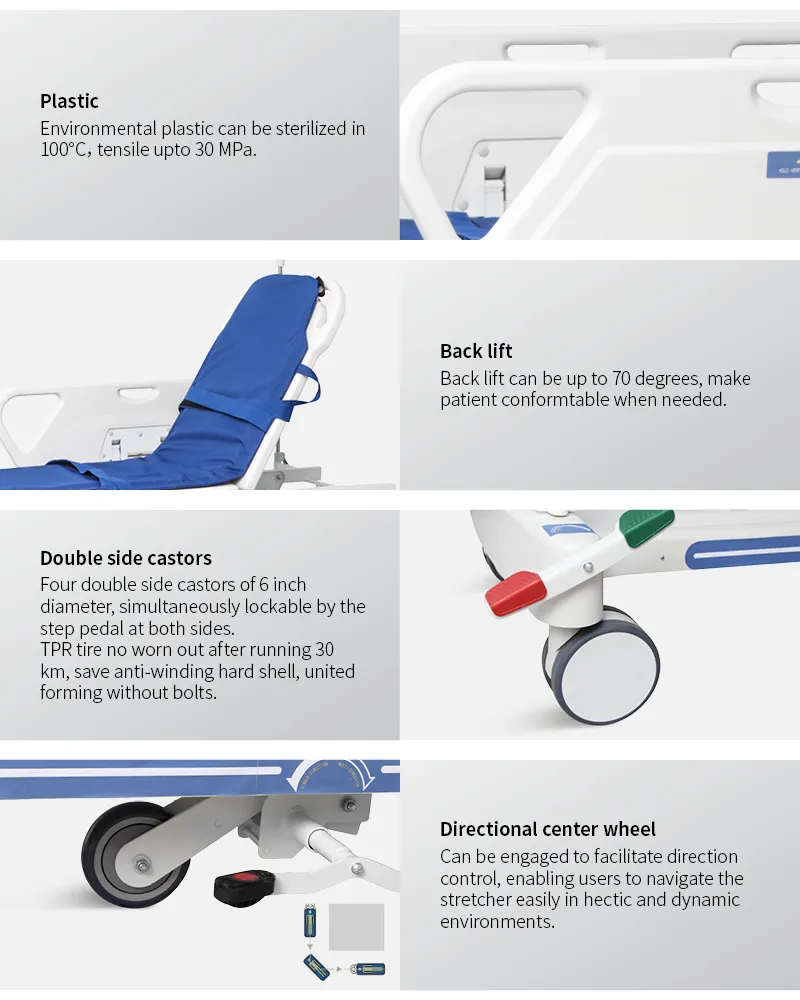

| * Environmental plastic can be sterilized in 100°C,tensile upto 30MPa |
| * 11 Process epoxy painting, ASTM testing anti-baterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact |
| Technical Parameters |
| * Length:1900mm |
| * Width:730mm |
| Min. height: 550mm |
| Max: height: 850mm |
| Functions |
| * 2 function: backrest by qualified airspring, height adjustment by solid crank system |
| * Length:1900mm |
| * Width:640 |
| * Height:550-850mm" |

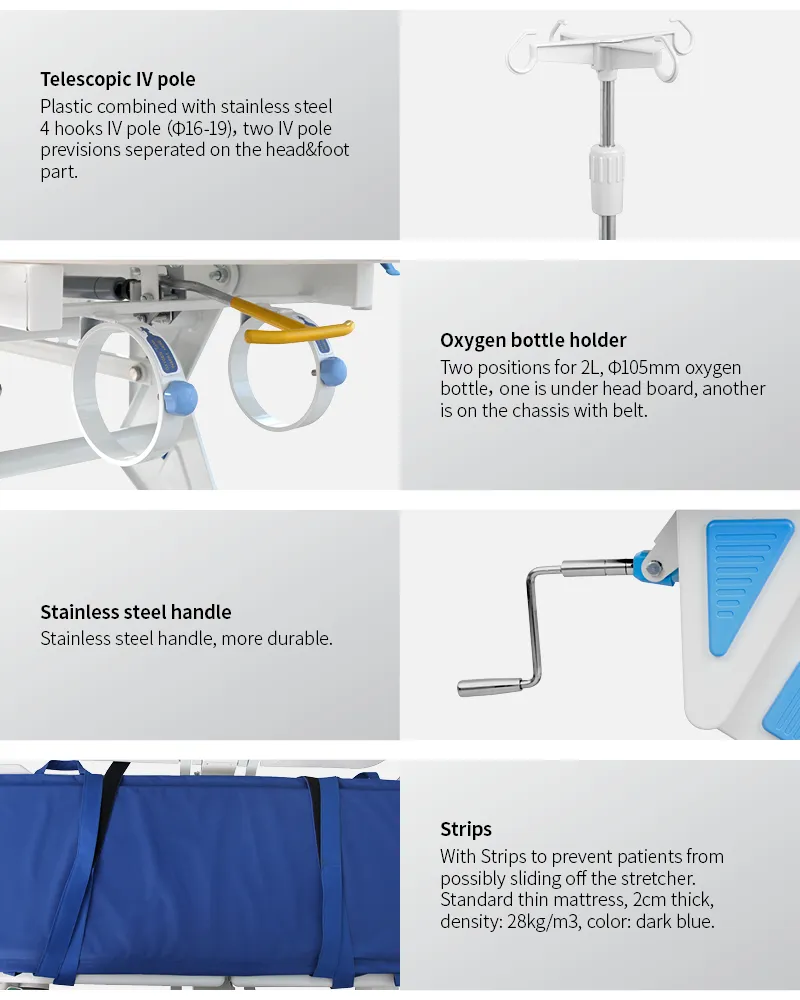

| Accessories Details |
| * We use metal dust protection for crank system, more endurable than plastic cover. |
| * We use robust tube in weight bearing structure |
| * Cover all metal srews with rubber cap, protect screws form possible corrosion |
| * 4 hooks for IV pole |
| * Back lift can be up to 80 degrees, make patient more conformtable when needed |

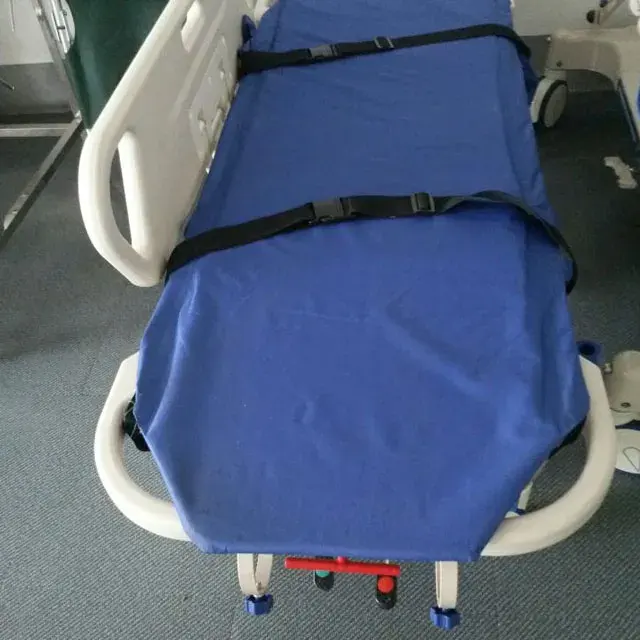

| * With Strips to provent patient from possible slide off the stretcher |
| * Four double side casters of 6 inch diameter, simultaneously lockable by the step pedal at both sides. |

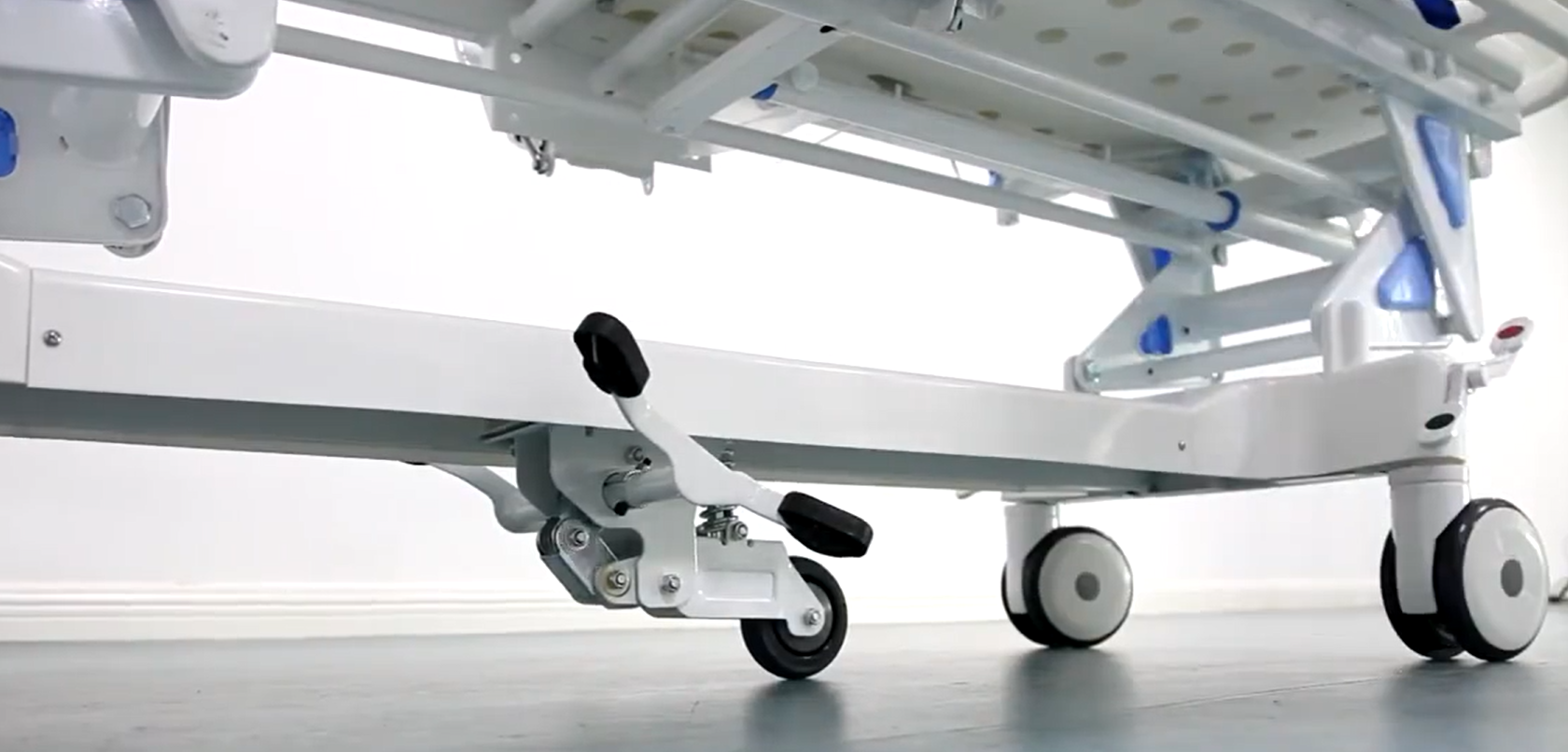

| * With direction wheel, which help nurse staff to push trolley to go straight easily by one person. |
| * TPR tire no worn out after running 30KM, save anti-winding hard shell, united forming without bolts |
| * Pass Dynamic test: One caster bearing 120kg run 30KM and pass obstacles 500time" |
| * Stainless steel handle, more durable |
| * Adjustable vertical oxygen bottle, load capacity:15KG |
| Specification | |
| Parameter | Category |
| Size | 1900*640*550-850mm |
| Back-rest lifting | 0-75° |
| Loading bearing | 220kg |
| Technical Configuration: | |
| Crank system | 1 set |
| Back rest gas spring | 1 pcs |
| ABS side rail | 1 set |
| 6'' castors with central locking | 4 pcs |
| Directional wheel | 1 pcs |
| IV pole previsions | 2 pcs |
| IV pole | 1 set |
| Oxygen cylinder holder | 1 pcs |
| Central locking break pedel | 2 pcs |
| Transfer mattress | 1 pcs |
| Directional pedel | 2 pcs |
Image details
Show Room
