Hospital Emergency Transfer Trolley Hydraulic Transfer Cart
Publish time 2023-04-18 15:39
Hospital Emergency Transfer Trolley Hydraulic Transfer Cart

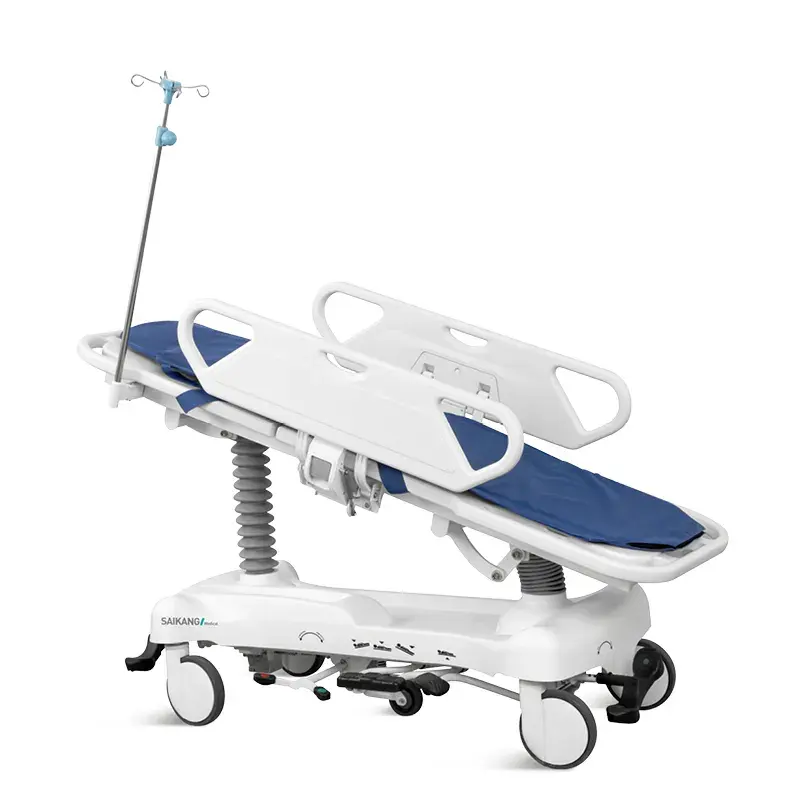

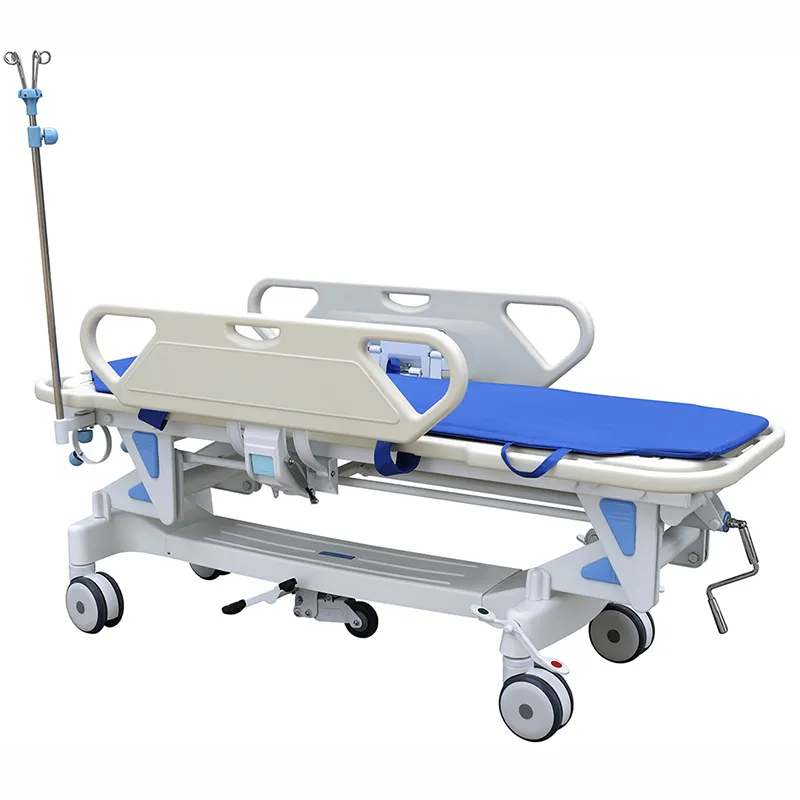

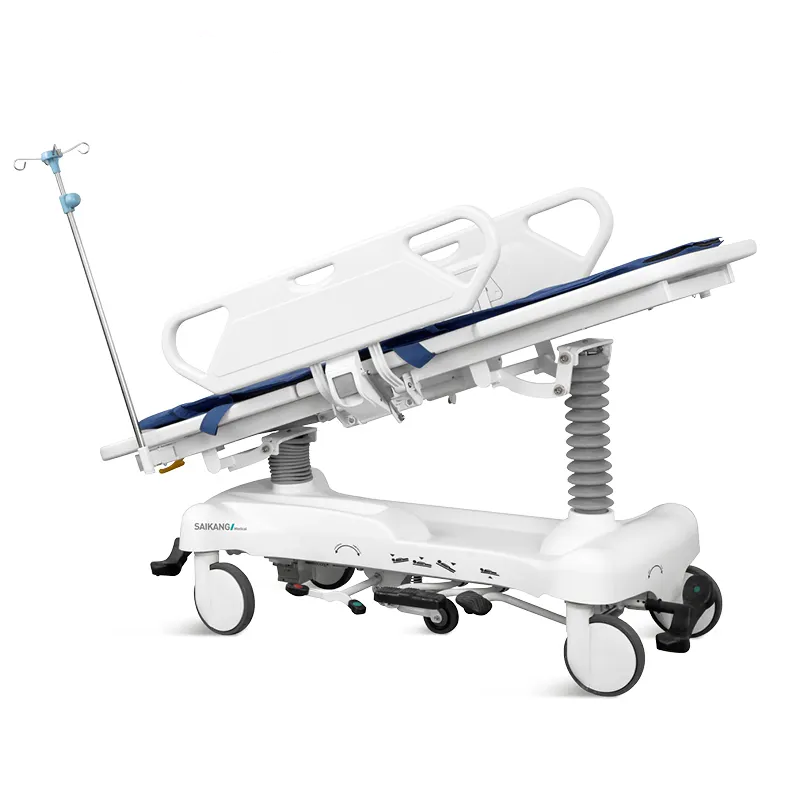

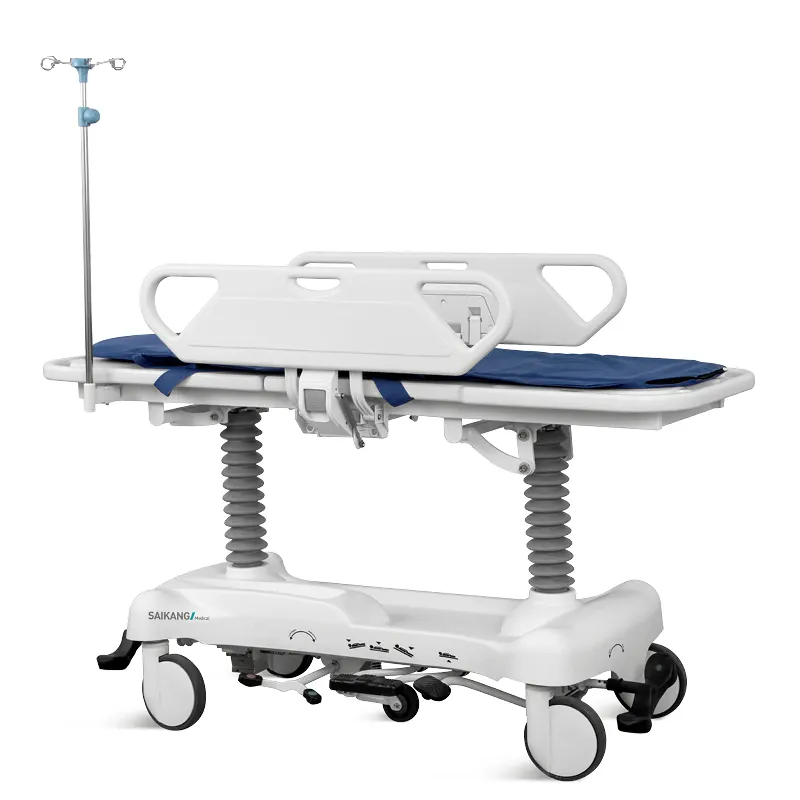

SLB041-B transfer trolley
Product Description
| Important Quality Control |

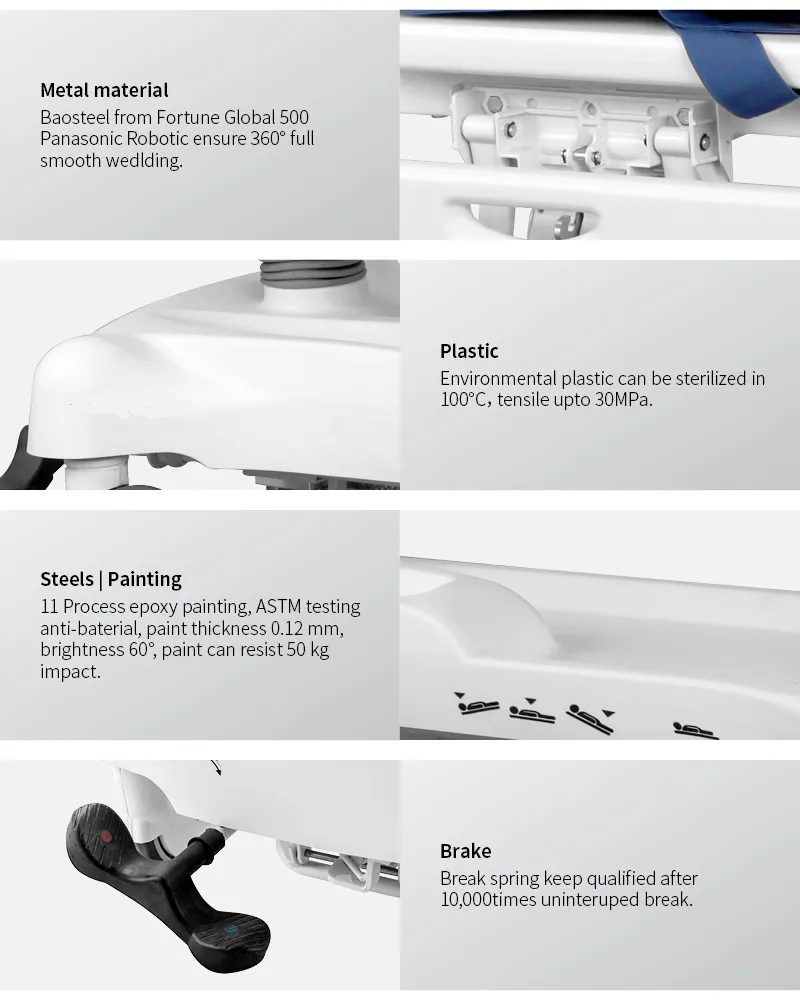

| * Baosteel from Fortune Global 500 |
| * Panasonic Robotic ensure |
| * 360° full smooth wedlding |
| * Environmental plastic can be sterilized in 100°C,tensile upto 30MPa |
| * 11 Process epoxy painting, ASTM testing anti-baterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact |
| * Break spring keep qualified after 10,000times uninteruped break |
| * Panasonic Robotic ensure |
| * 360° full smooth wedlding |
| Functions |

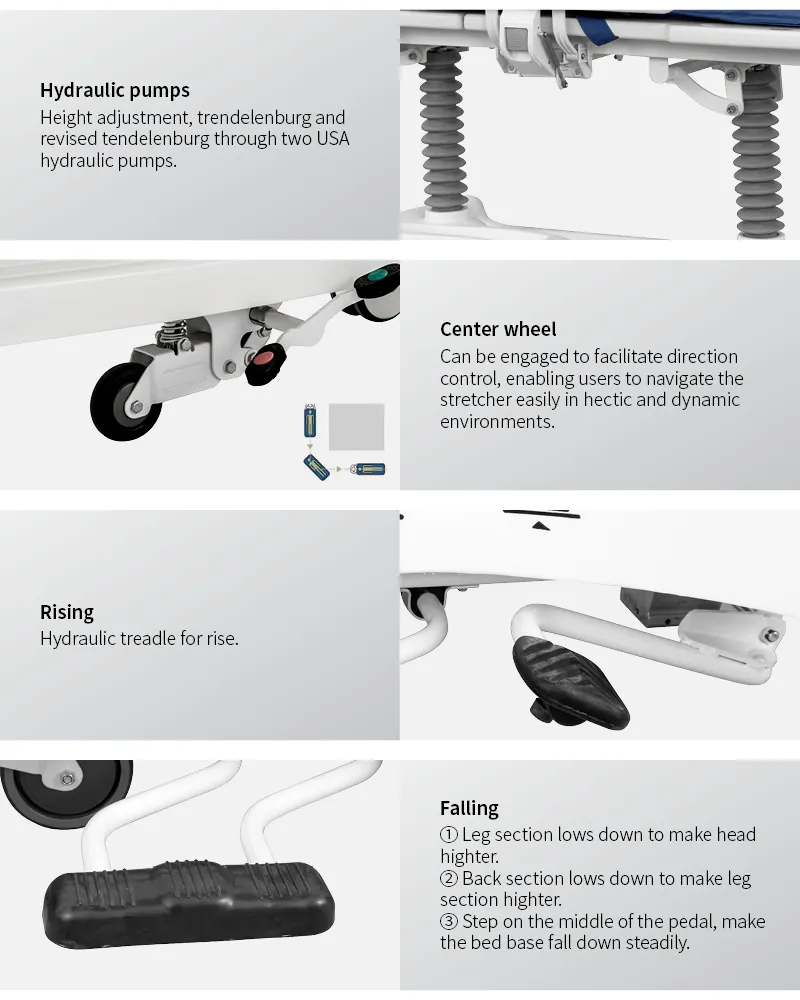

| * 4 functions: backrest by qualified airspring, height adjustment, trendelenburg and revised tendelenburg through two USA hydraulic pumps |
| * Length:1900mm |
| * Width:640 |
| * Height:630-930mm |
| Accessories Details |

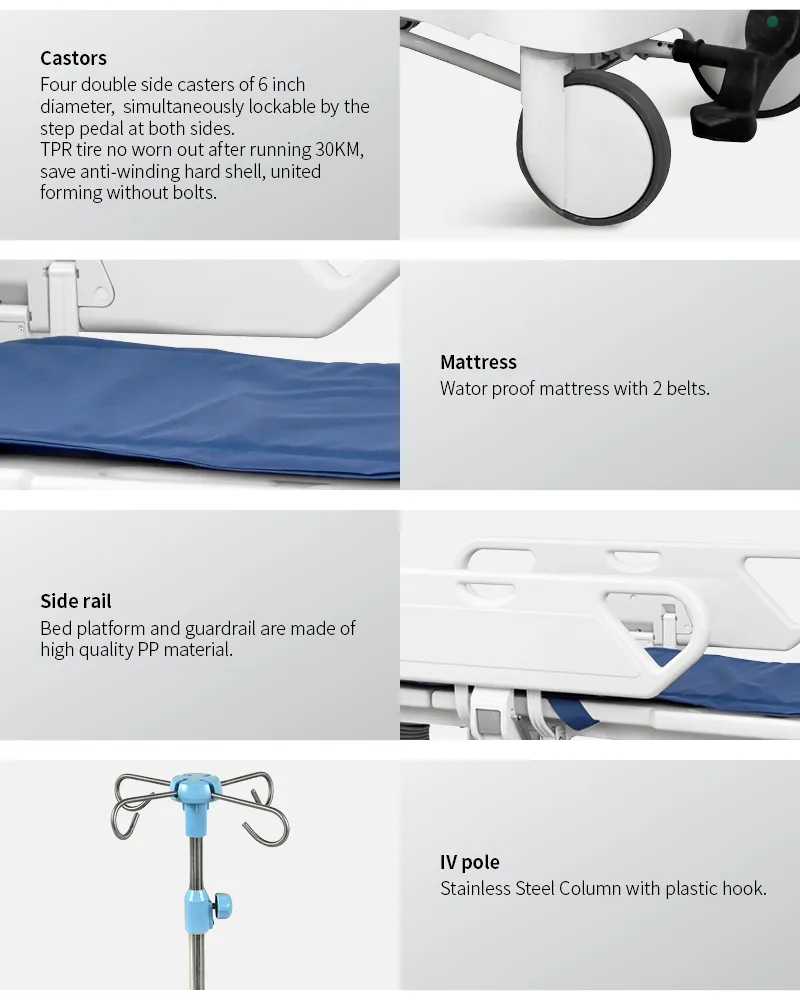

| * Full SS IV pole, bearing 15kg |
| * X-ray translucent platform,all ABS material |
| * Four double side casters of 8 inch diameter, simultaneously lockable by the step pedal at both sides. |
| * With direction wheel, which help nurse staff to push trolley to go straight easily by one person. |
| * TPR tire no worn out after running 30KM, save anti-winding hard shell, united forming without bolts |
| * Pass Dynamic test: One caster bearing 120kg run 30KM and pass obstacles 500 time |
| Technical Parameters | |
| Length | 1930mm |
| Width | 640mm |
| Min. height | 630mm |
| Max. height | 930mm |
| Technical Configuration | |
| Hydraulic pump | 2pcs |
| Back rest gas spring | 1pcs |
| ABS side rail | 1set |
| 8'' castors, central locking | 4pcs |
| Directional pedal | 2 pcs |
| Transfer mattress | 1 pcs |
Image details
