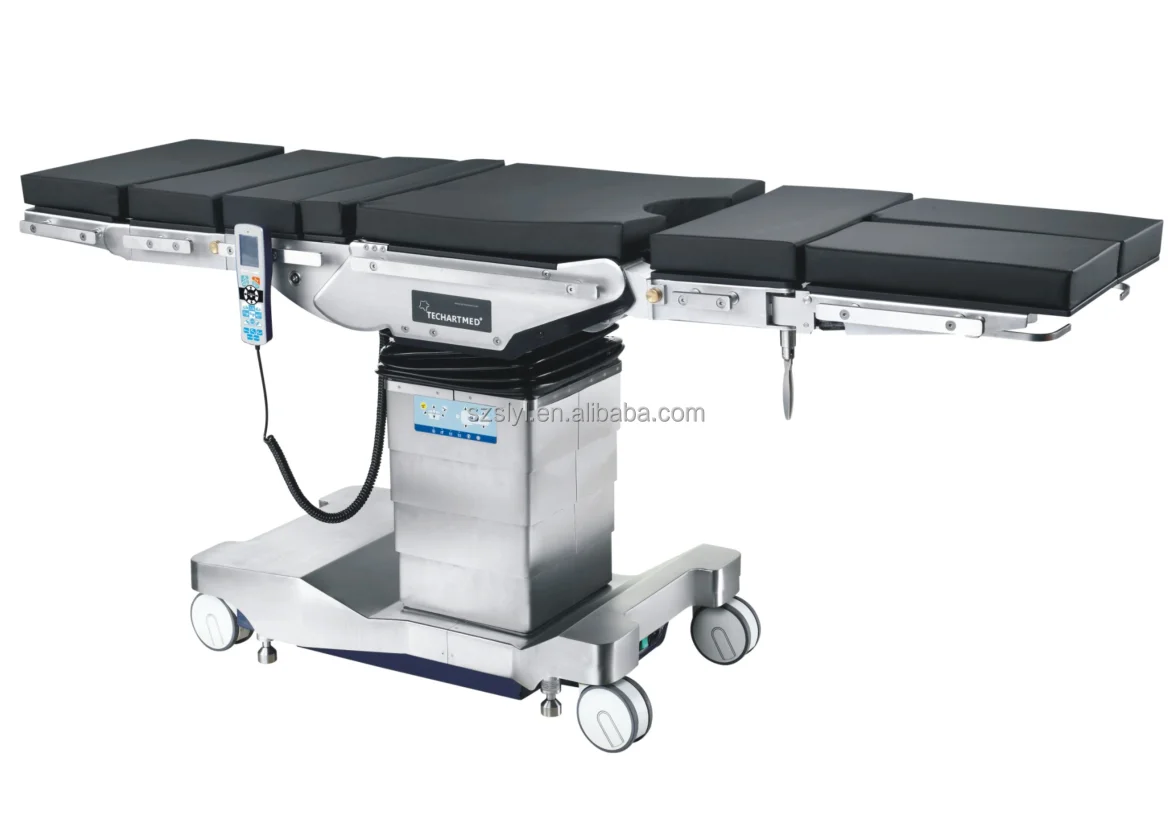

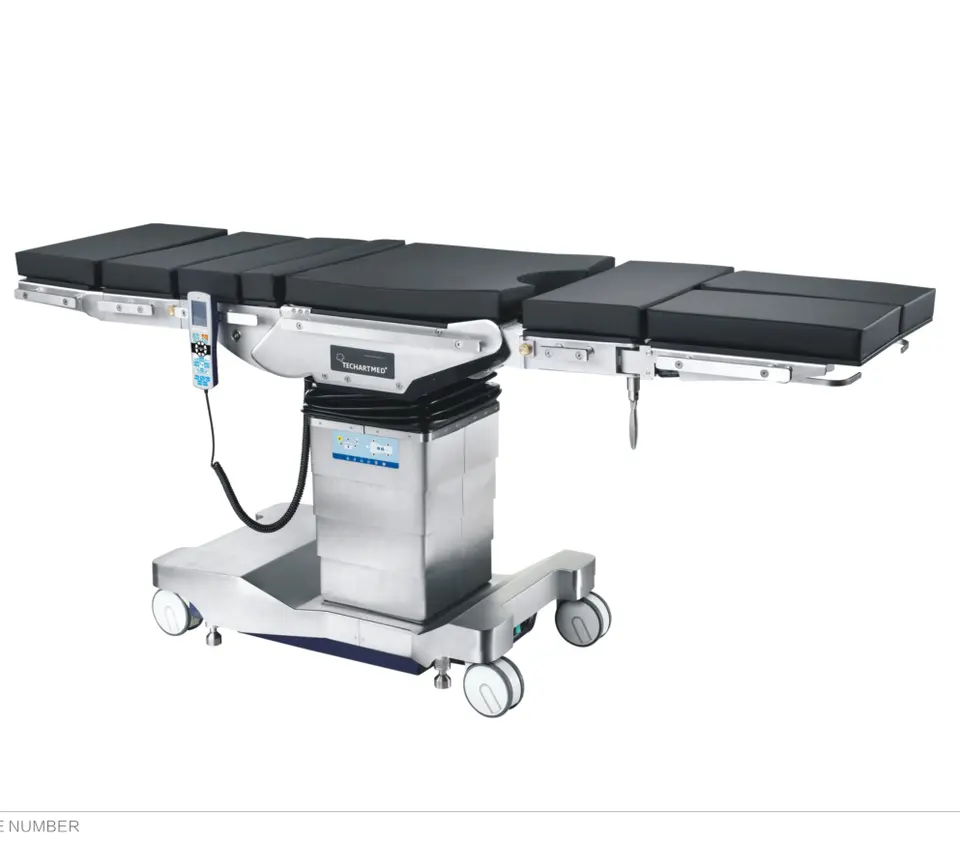

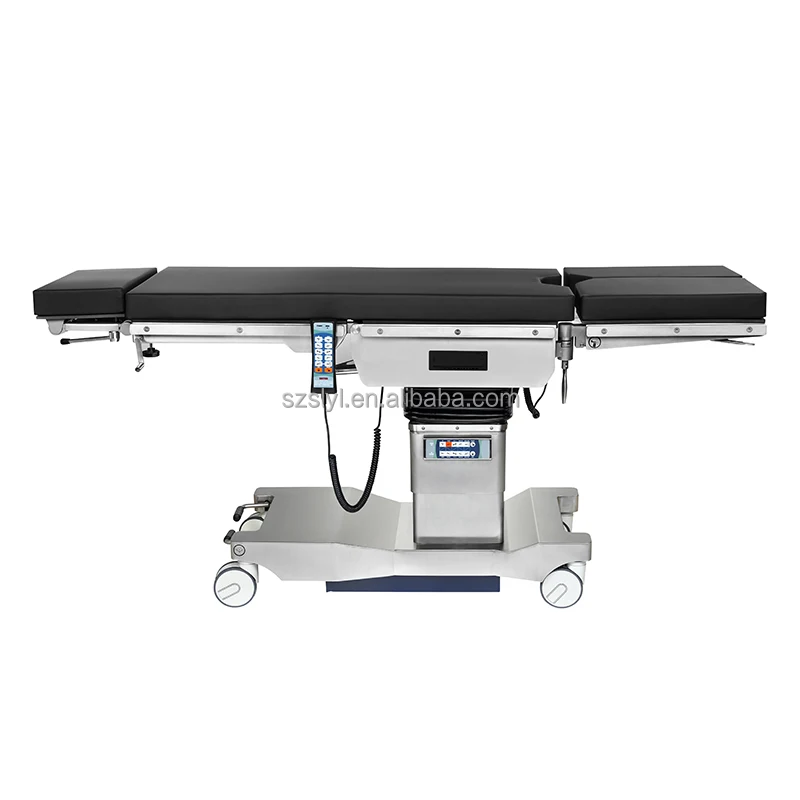

Electro- Hydraulic Operating Table

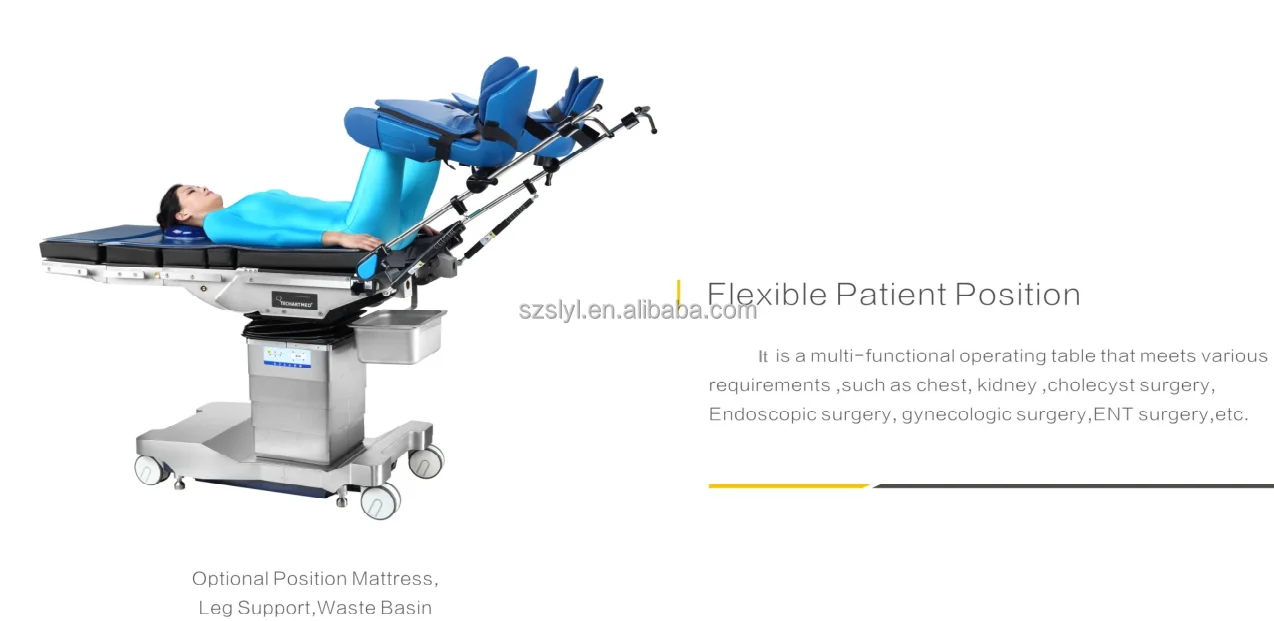

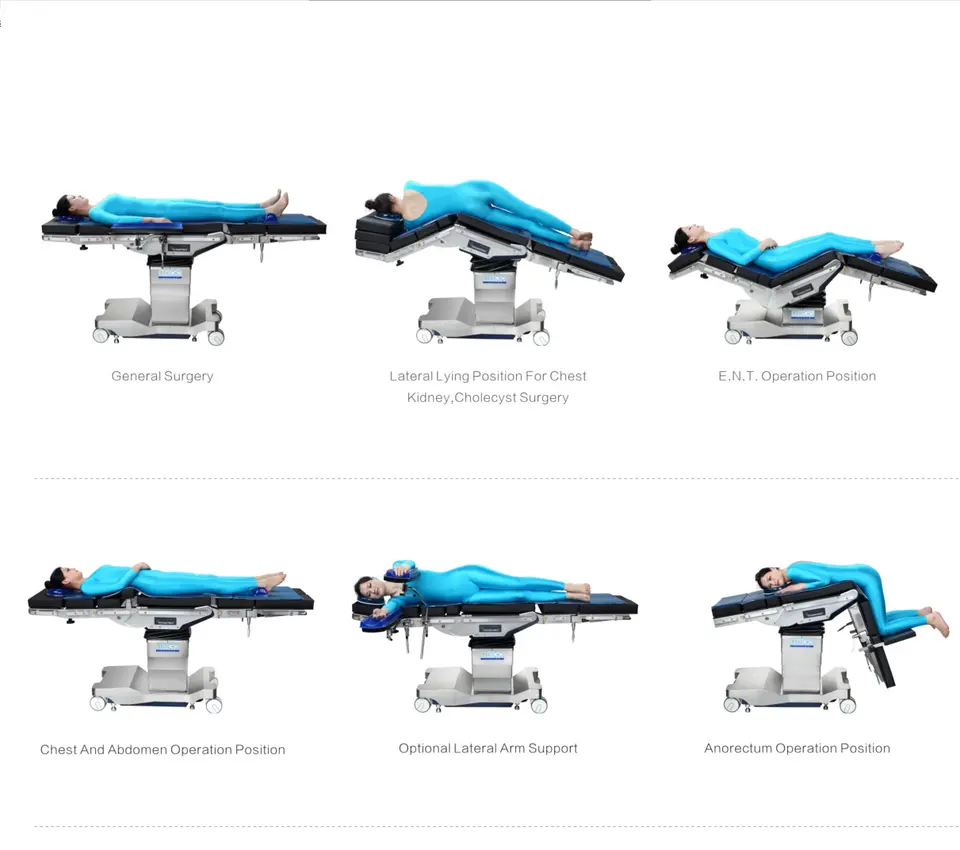

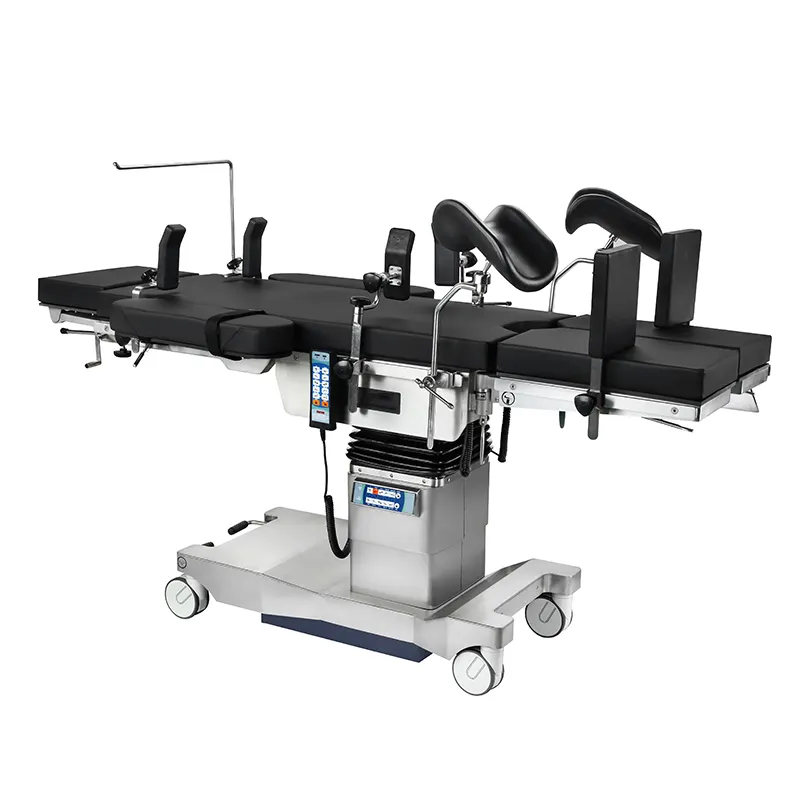

SL-ET800 is a multi-functional operating table that meets various requirements ,such as chest, kidney ,cholecyst surgery, Endoscopic surgery, gynecologic surgery, ENT surgery etc.
Patient- centered and user- friendly as the development basic principles for Us, has made Techartmed become one of the leading manufacturers in China. Close cooperation with the hospital and years of experience have resulted in our tries and improvements of our tables.
Engineered for increasingly complex surgical scenes, SL-ET800 comes with extreme loads in any position.The modular structure enables it to be adapted to match the
size of the patient and in no time at all it can be equipped for any surgical discipline.
A longitudinal shift of up to 310mm makes the ET800 even more versatile.
size of the patient and in no time at all it can be equipped for any surgical discipline.
A longitudinal shift of up to 310mm makes the ET800 even more versatile.

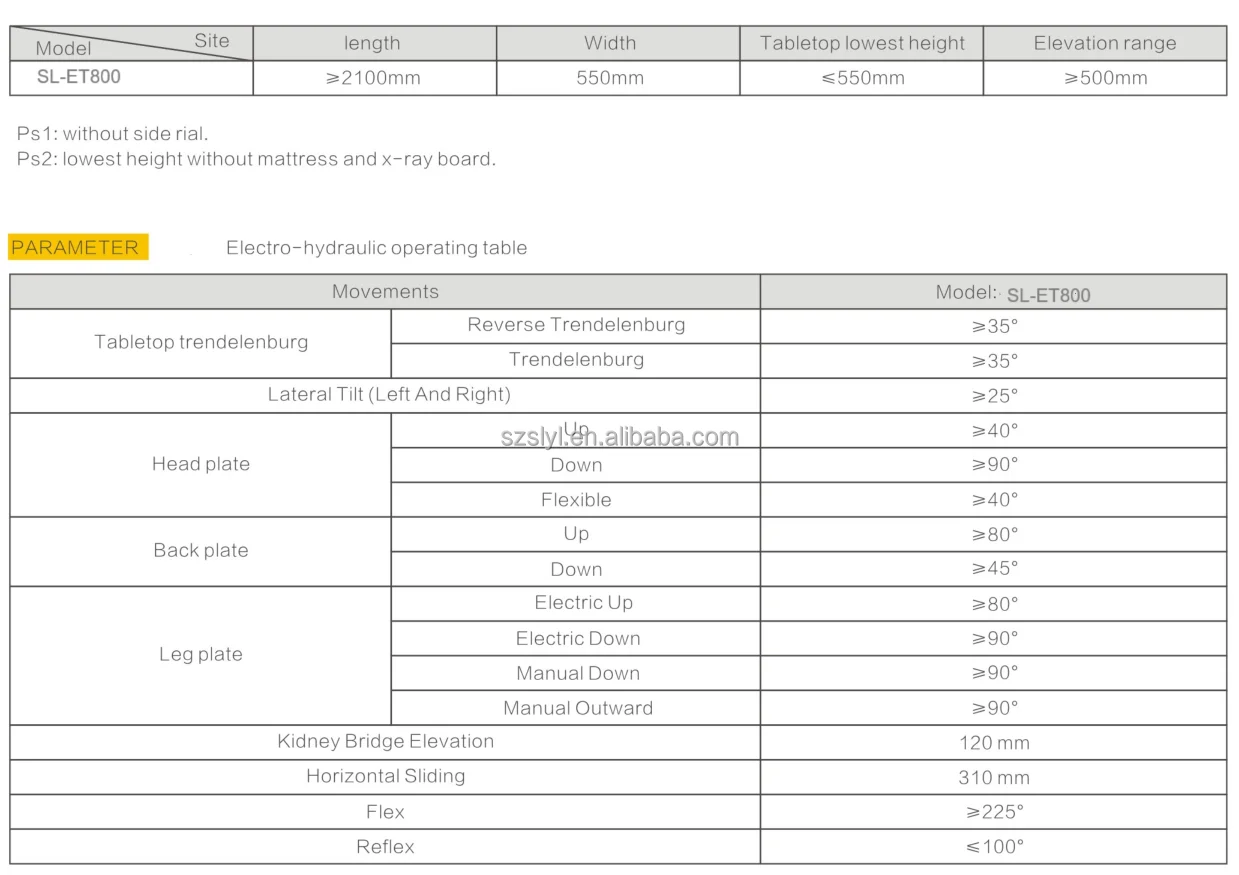

SPECIFICATION
Image details
FEATURES
1 Longitudinal slide up to 310mm for free access to C- arm without repositioning the patient.
2 Extreme weight load capacity of 350 kg with highest safety and stability.

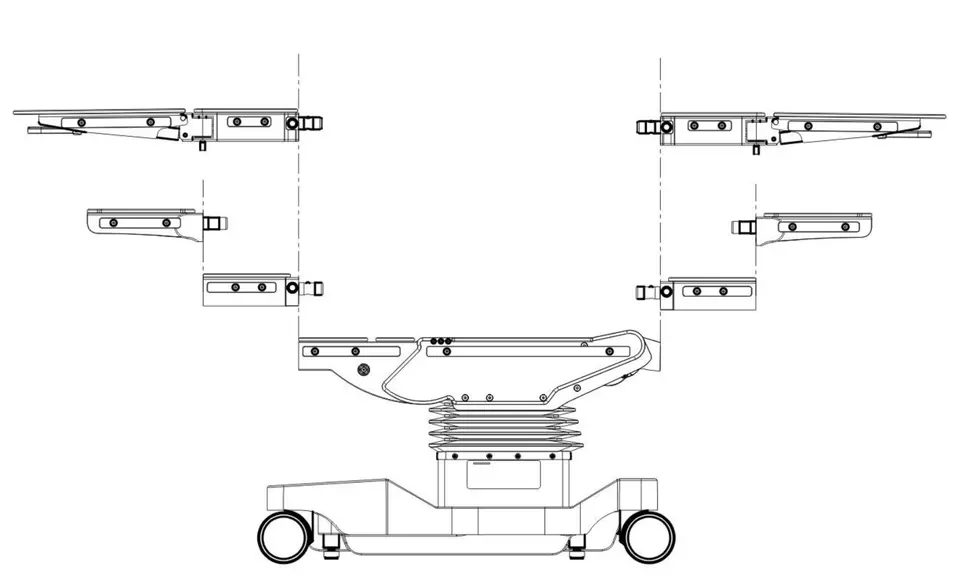

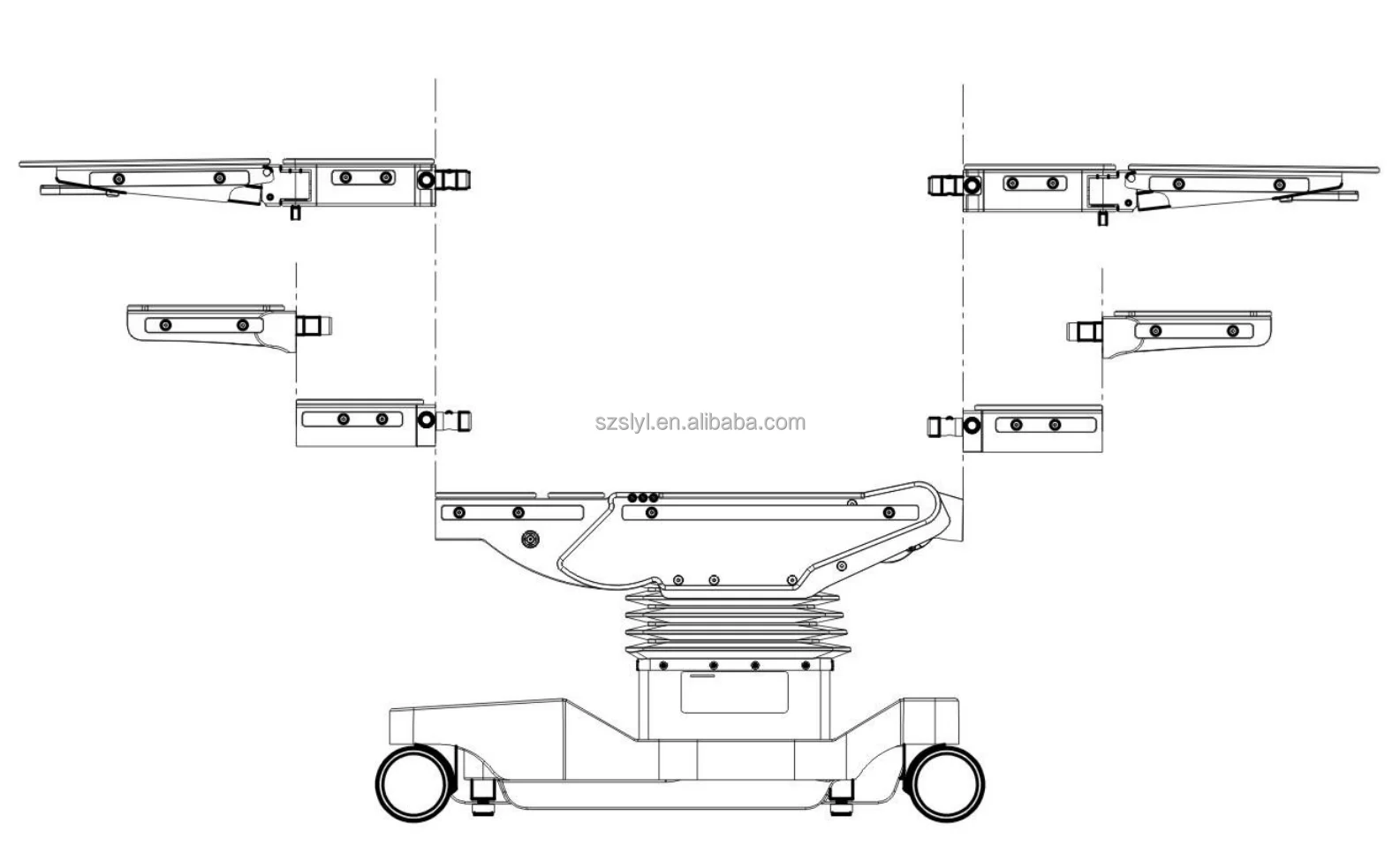

3 Modular design tabletop tailored for various surgical discipline needs.
4 The Easy click new mounting point enables the table adapted to wide variety of surgery and patients’height.

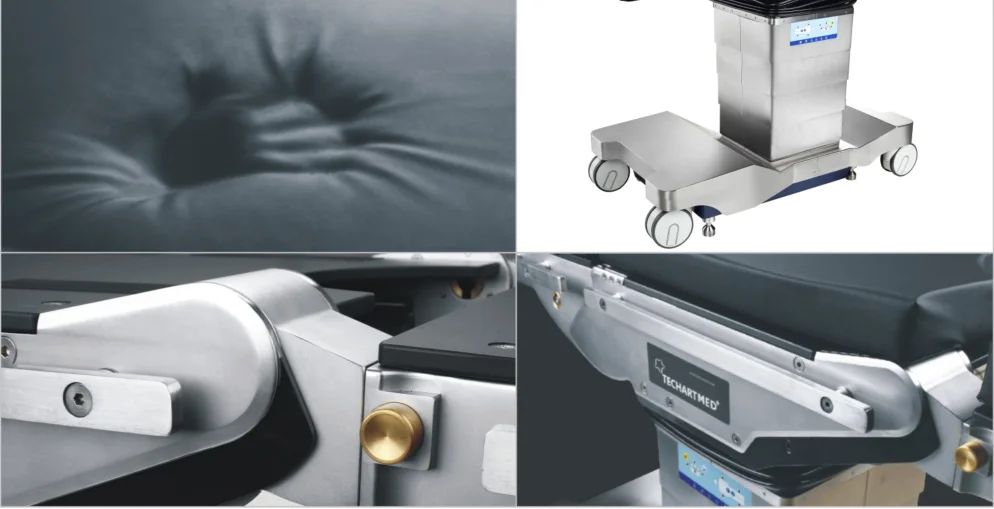

5 Memory pad with antistatic,waterproof design.

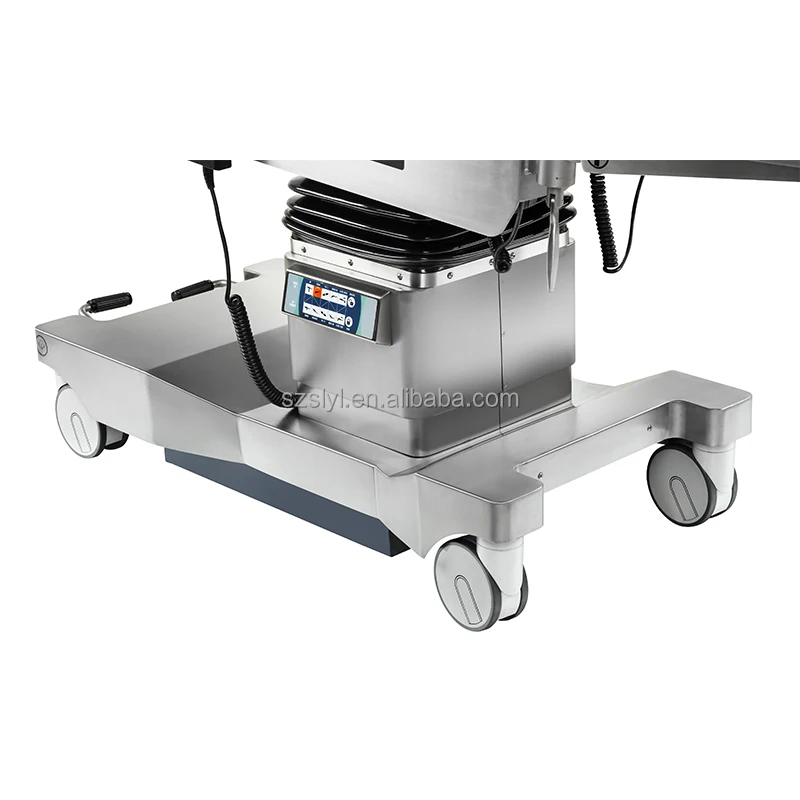

6 Standard override panel control makes the control safer.

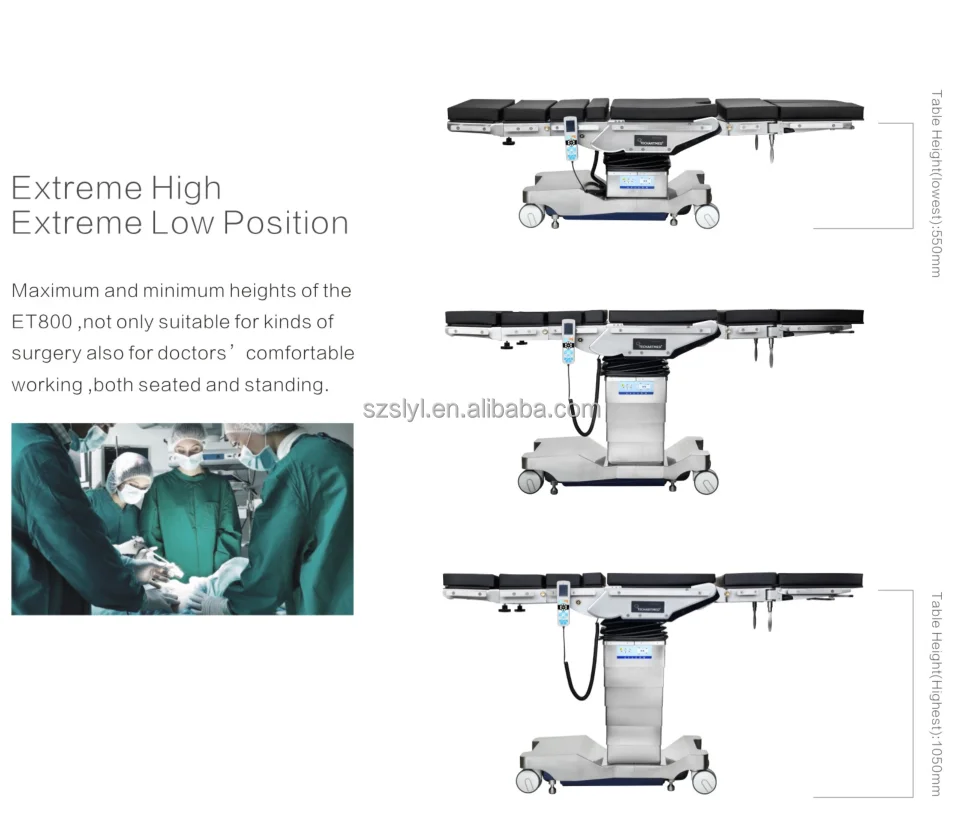

7 Maximum and minimum heights of the SL- ET800 ,for comfortable working ,both seated and standing.
| Lenth/widt | 2100mm/550mm |
| Elevation(up/down) | 550mm/1050mm |
| Trendelenburg | 35° |
| Reverse Trendelenburg | 35° |
| Lateral Tilt(left/right) | 25°/25° |

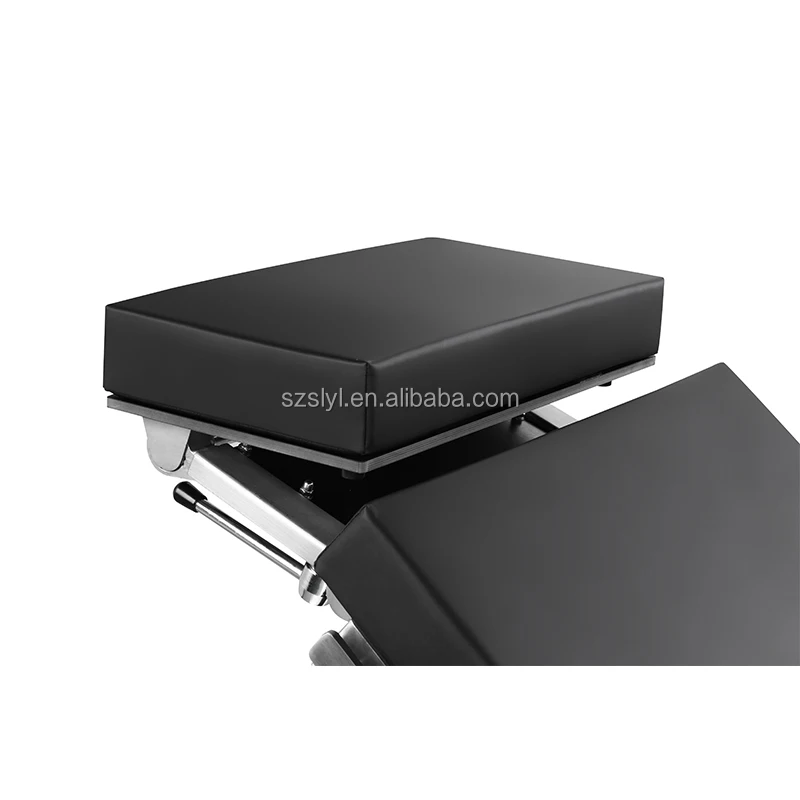

| Head Rest(up/down) | 40°/90° |
| Footplate(up/down&horizontal positioning) | 80°/90° 90° |
| Back plate(up/down) | 80°/45° |
| Longitudinal Sliding | 310mm |
| Power | 220v,50Hz,1.0kW |
| Load Capacity | 350KG |
| Number of section | 6 |

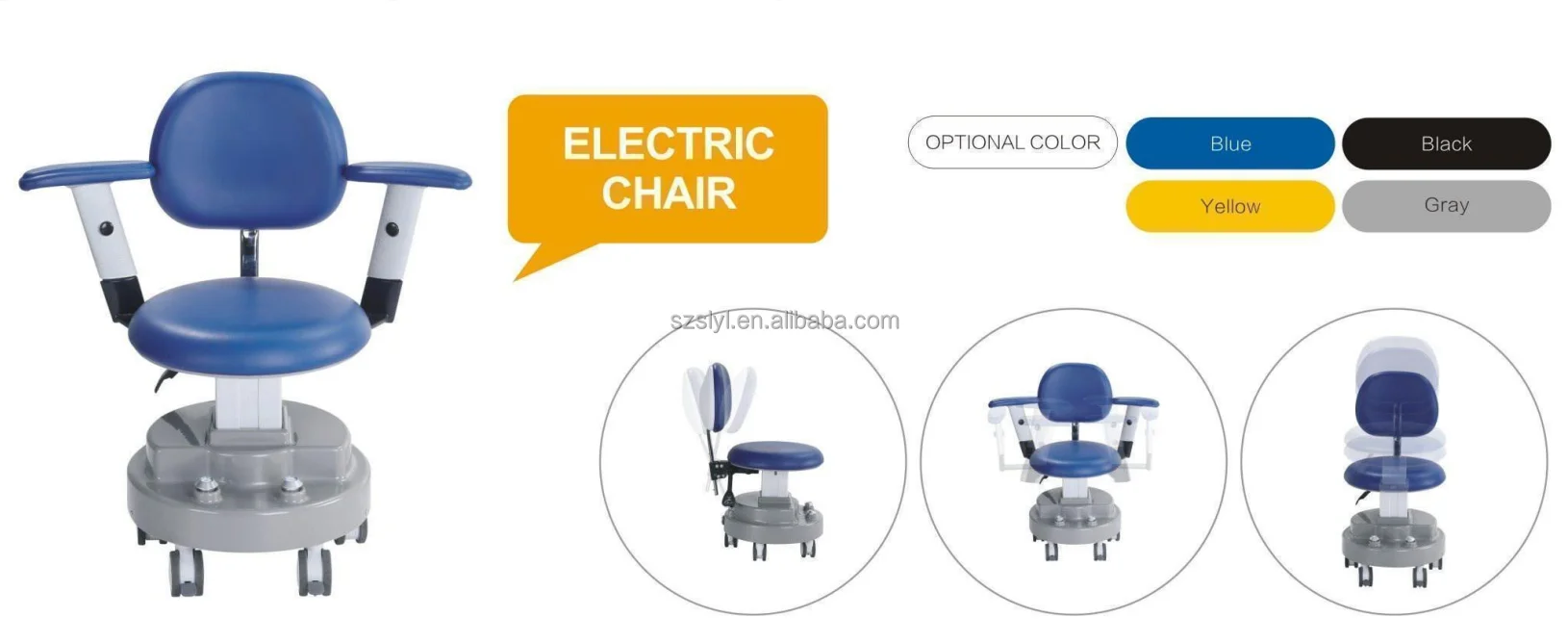

Surgical Chair Optional
