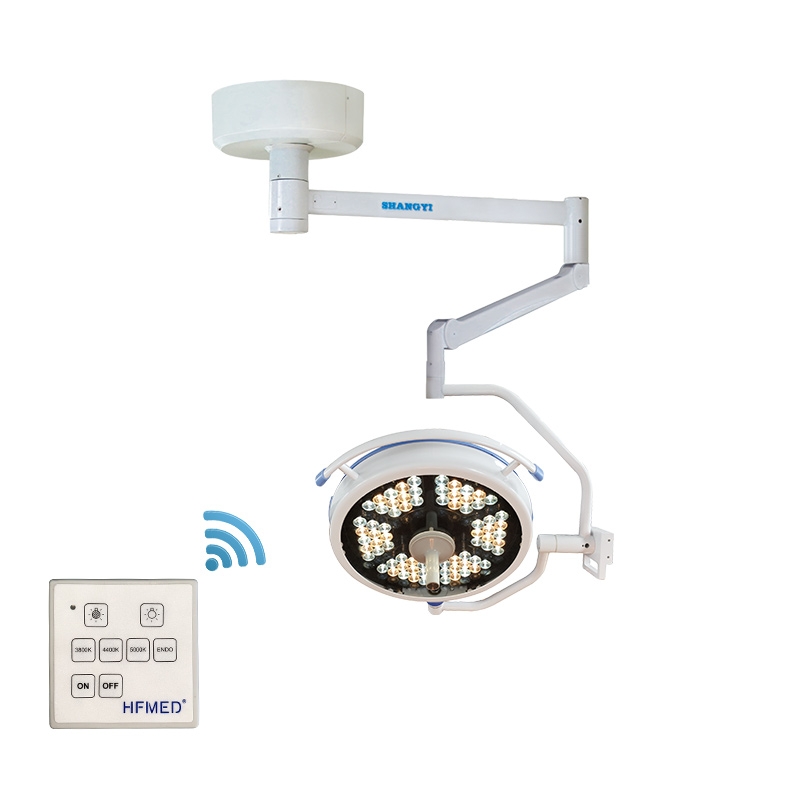

700/500 LED Shadowless Surgical Lamp Operation Lamp Cell Mount Examination Light
Publish time 2023-08-21 17:44
700/500 LED Shadowless Surgical Lamp Operation Lamp Cell Mount Examination Light
Product Description
LED series shadowless operating lamp can widely be used in diversified operation occasion to meet the demand of the illumination, and it is the ideal illumination instrument of the modern operating theater.

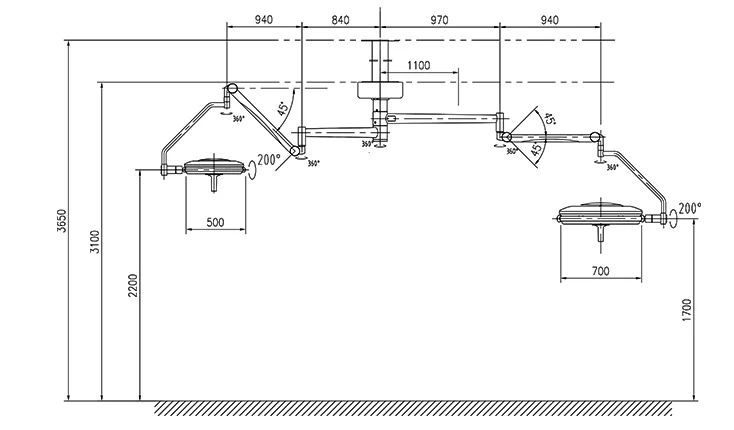

Schematic diagram of 700/500 LED
Application: Stomatology Department,Cosmetology,Medical Operation and Ophthalmology Department.

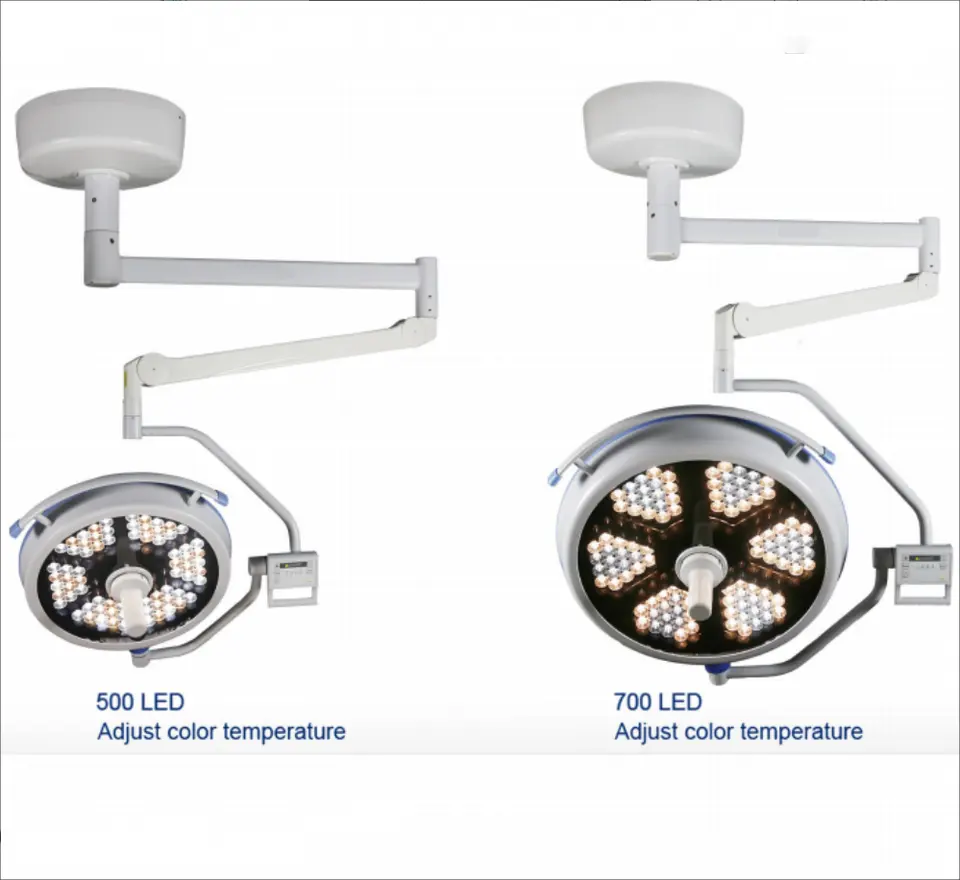

Type | 700/500 LED (Adjust color temperature ) |
Illuminance(Lux) | ≥160,000lux ≥140,000lux |
Colour temperature(k) | 3800±500K,4400±500K,5000±500K |
Colour reduction index(Ra) | 93 |
Total irradiance(W/m2) | 544W/m2 534W/m2 |

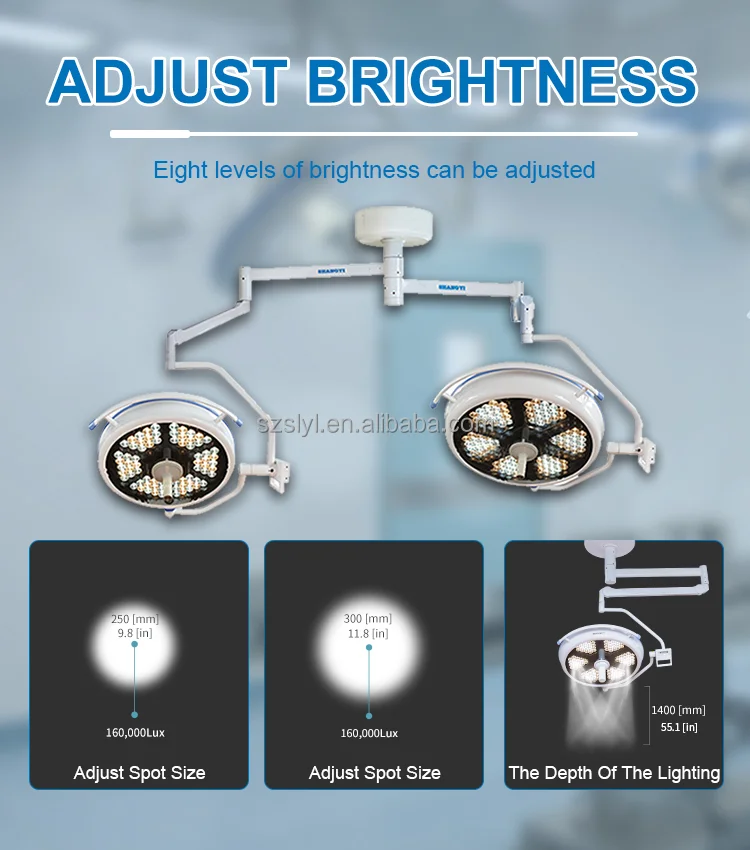

Size of light field (mm) | 250~300mm |
Service life of illuminant(h) | 50,000h |
Power supply voltage | AC110V-240V,50HZ-60HZ |
Lowest height of installation | 2900mm |
Total power consumption(W) | 80W 60W |
Total LED bulb quantity(pcs) | 180pcs*(18*6+12*6) |

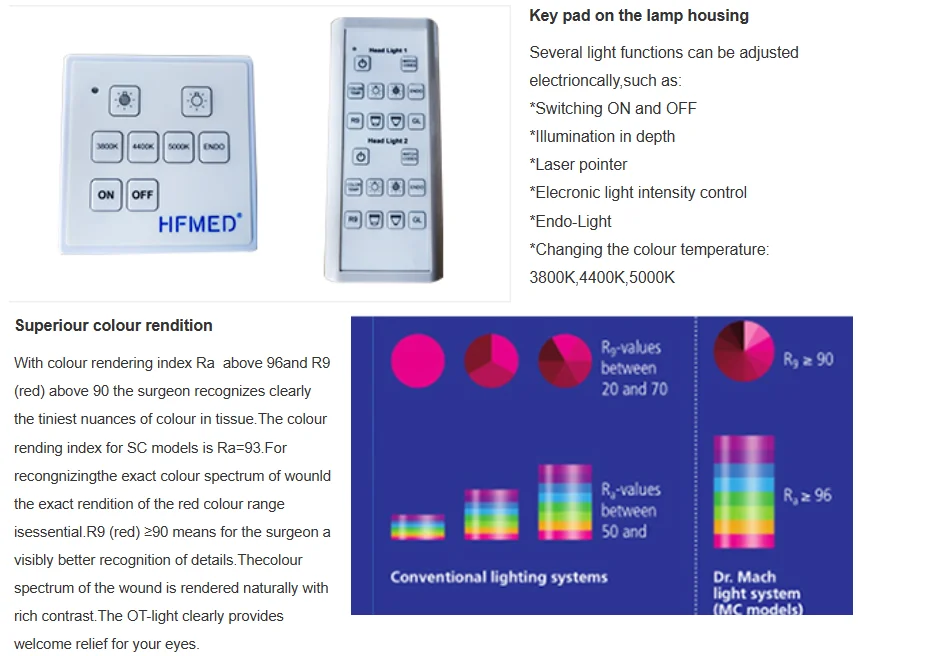

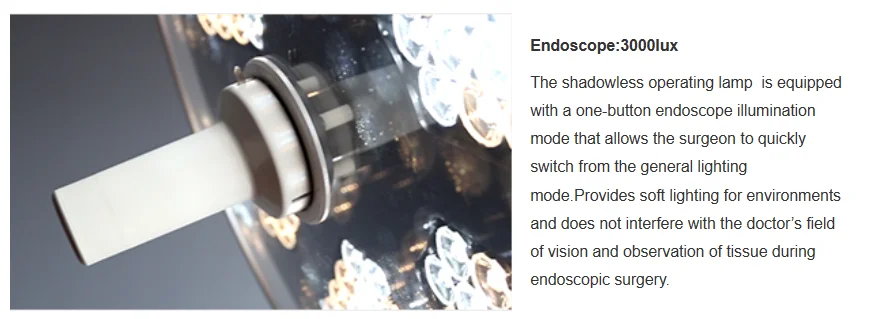

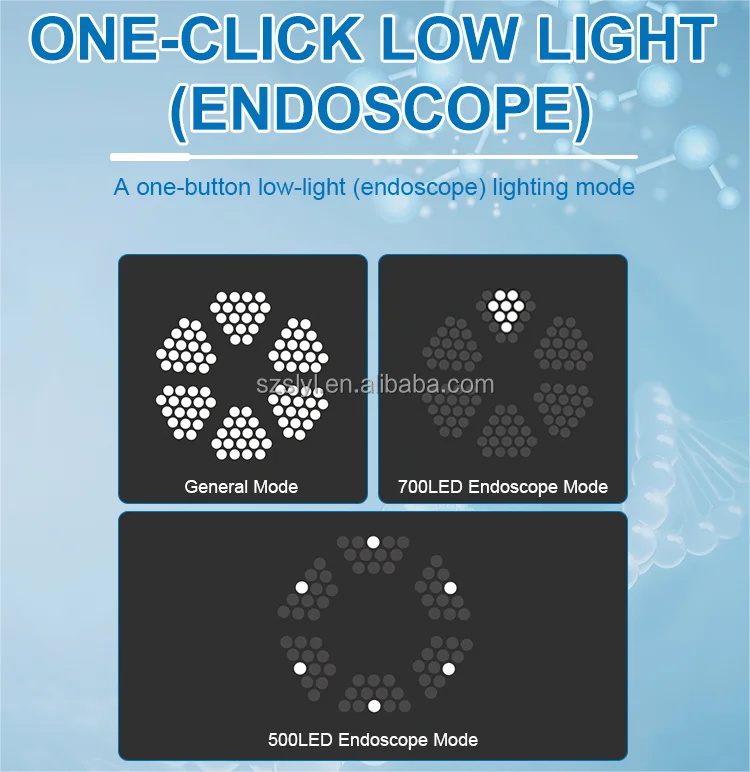

The shadowless operating lamp is equipped with a one-button endoscope illumination mode that allows the surgeon to quickly switch from the general lighting mode.Provides soft lighting for environments and does not interfere with the doctor’s field of vision and observation of tissue during endoscopic surgery.
Through reliable beam synthesis control technology, the color temperature can be adjusted between 3800K-5000K under the condition of ensuring the color rendering index of 93.Surgeons can adjust the color temperature according to their own habits or different surgical sites to achieve the ideal tissue contrast and achieve the best tissue resolution.
Image details
