Electro-Hydraulic Operating Table
Engineered for increasingly complex surgical scenes,SL-ET700S comes with intelligent automatic control system satisfying various demands of general surgeries. Extra wide tabletop,extreme loading system,long horizontal sliding that can be suitable for both X-ray and C- arm. ET7OOS is an ideal electro-hydraulic operating table.
Features:
Longitudinal slide up to 350mm for free access to C arm
Extreme weight load capacity of 300kgs with highest safety and stability
Memory pad with antistatic ,waterproof design.
Standard override panel control makes the control safer
"EASY CLICK"leg plate control by electro-hydraulic and manual
Battery power for 50- 80 operations
Longitudinal slide up to 350mm for free access to C arm
Extreme weight load capacity of 300kgs with highest safety and stability
Memory pad with antistatic ,waterproof design.
Standard override panel control makes the control safer
"EASY CLICK"leg plate control by electro-hydraulic and manual
Battery power for 50- 80 operations
DETAILS
1.Maximum 350mm motorised longitudinal shift for flexible use of the C- arm.
2.“EASY CLICK”for simple and quick module changes.

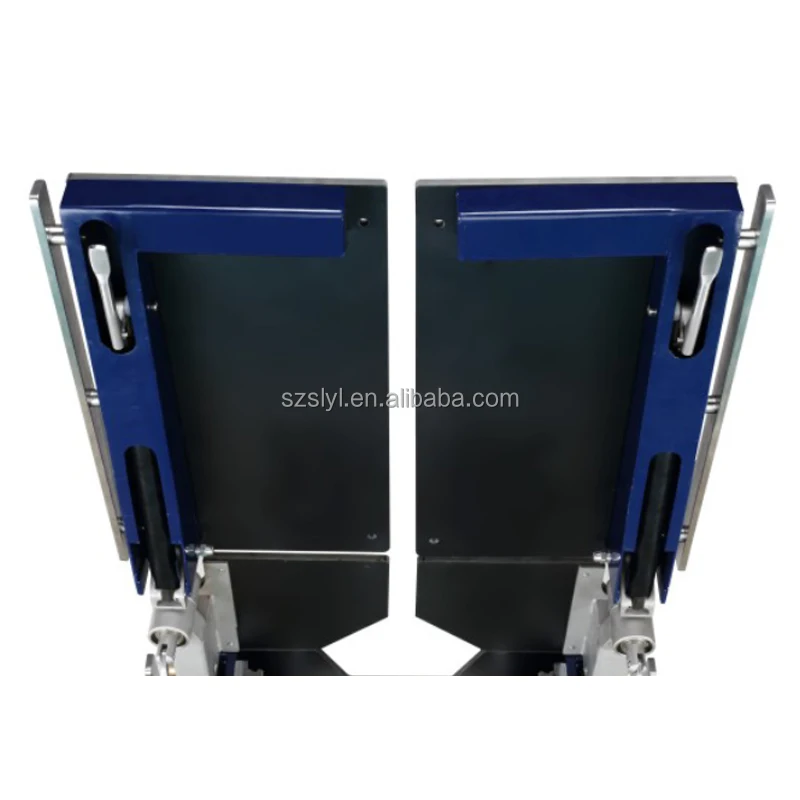

3.Leg plate:lmported gas spring for easy controls.

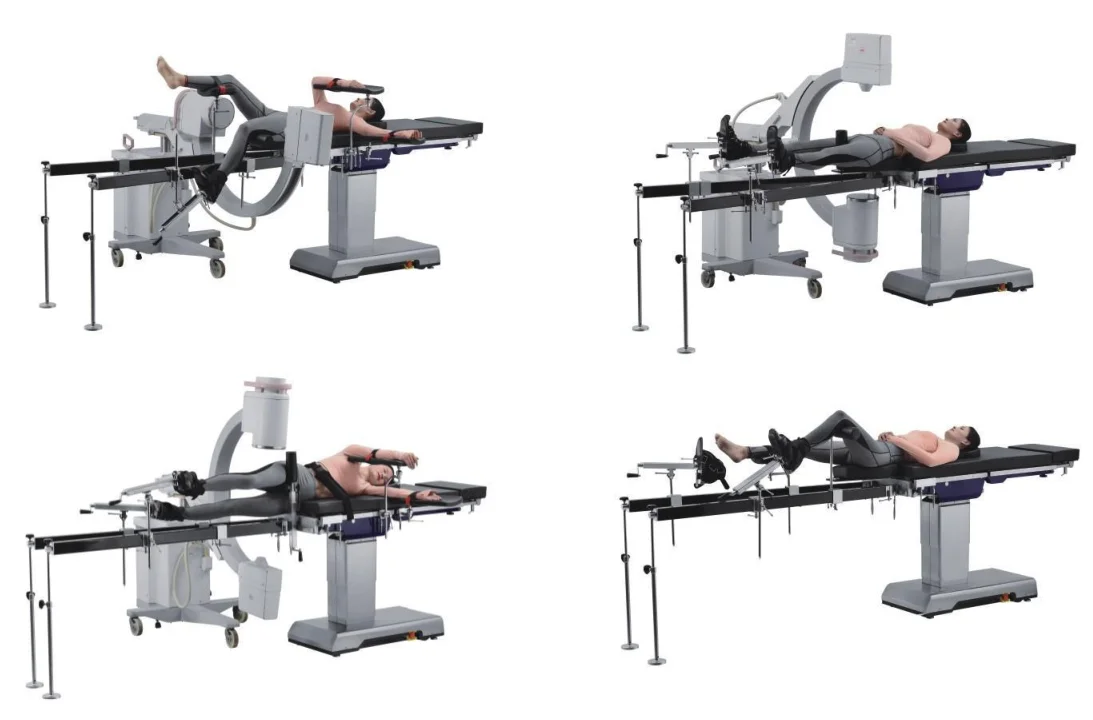

4.One button reposition function,designed and made specially for X-ray and C- arm use.

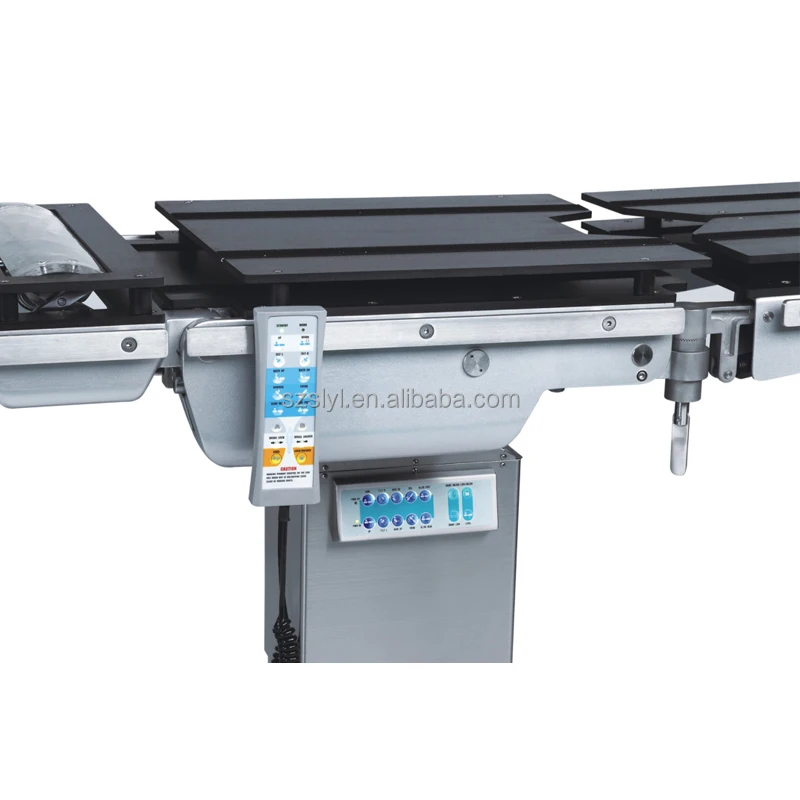

5.Double control system.
6.Built-in kidney bridge.

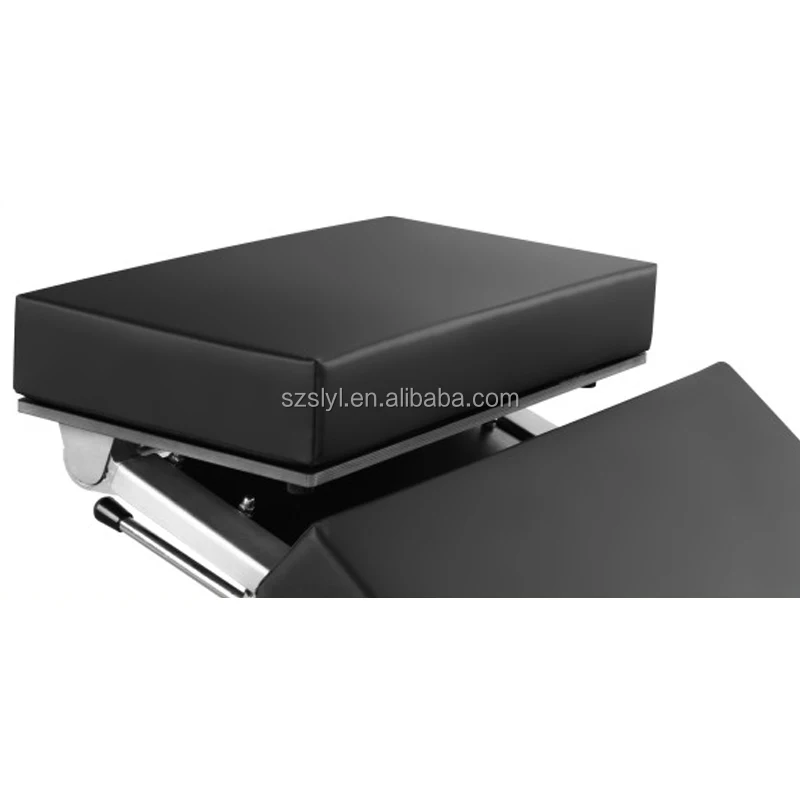

7.Two Joint head plate.
1.Maximum 350mm motorised longitudinal shift for flexible use of the C- arm.
2.“EASY CLICK”for simple and quick module changes.
3.Leg plate:lmported gas spring for easy controls.
4.One button reposition function,designed and made specially for X-ray and C- arm use.
5.Double control system.
6.Built-in kidney bridge.
7.Two Joint head plate.

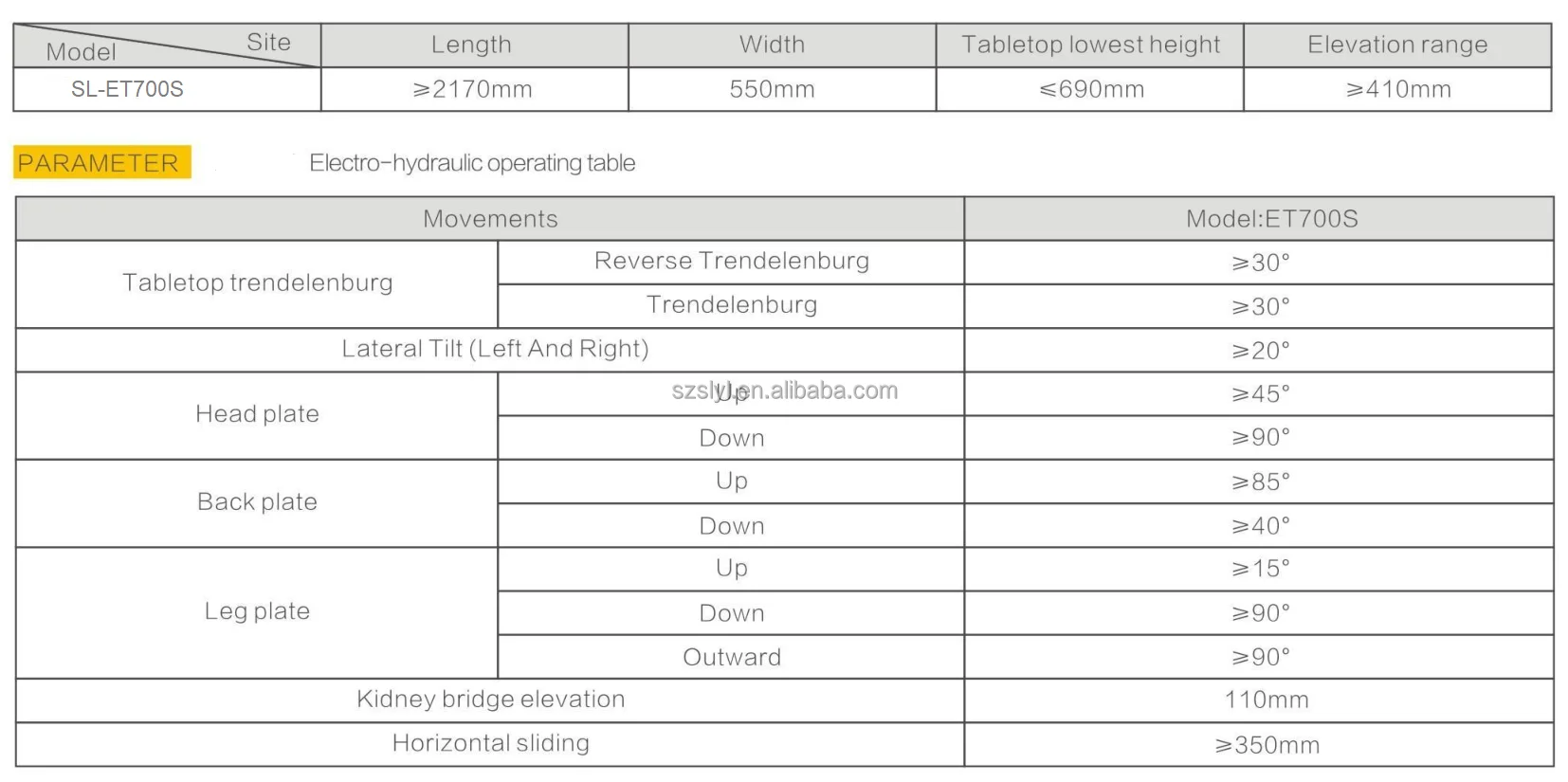

SPECIFICATION
Accessories:
* 1 Anaesthetic Screen
* 2 Shoulder Rest
* 2 Arm Support
* 2 Body Suppport
* 2 Knee Crutch
* 1 Matress
| Lenth/width: | 2170mm/550mm |
| Elevation(up/down): | 690mm/1100mm |
| Trendelenburg: | 30° |
| Reverse Trendelenburg: | 30° |
| Lateral Tilt(left/right): | 20°/20° |
| Head Rest(up/down): | 40°/90° |
| Footplate(up/down&horizontal positioning): | 15°/90° 90° |
| Back plate(up/down): | 85°/40° |
| Longitudinal Sliding: | 350mm |
| Power: | 220v,50Hz,1.0kW |
