Mobile Hydraulic Operation Table Electrical Surgical Table Electro- Hydraulic Operating Table
Publish time 2023-08-21 17:00

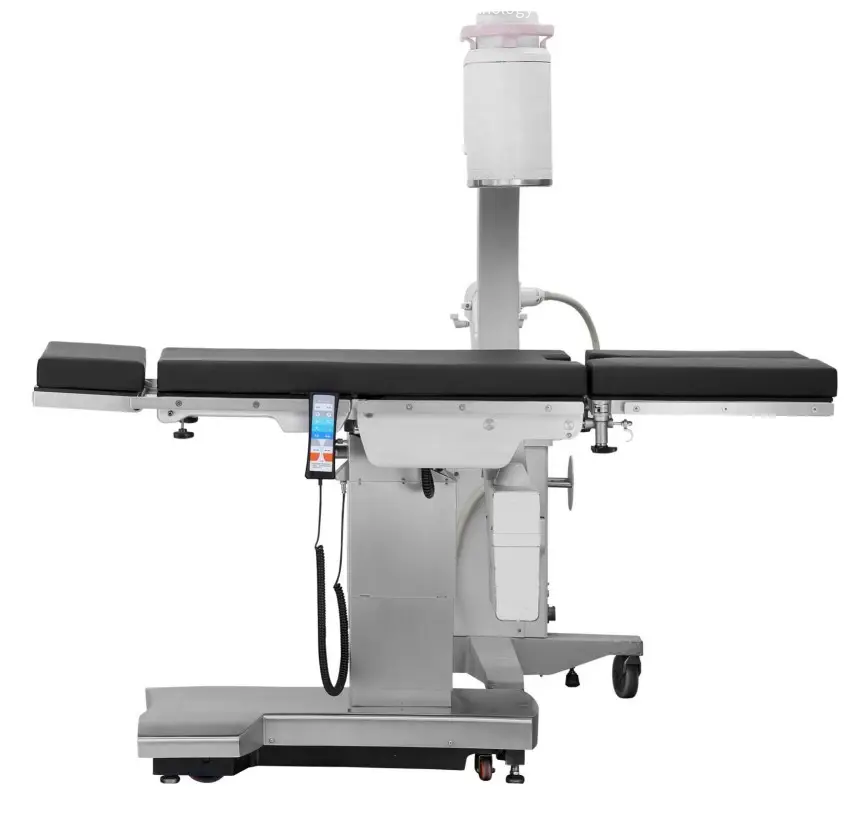

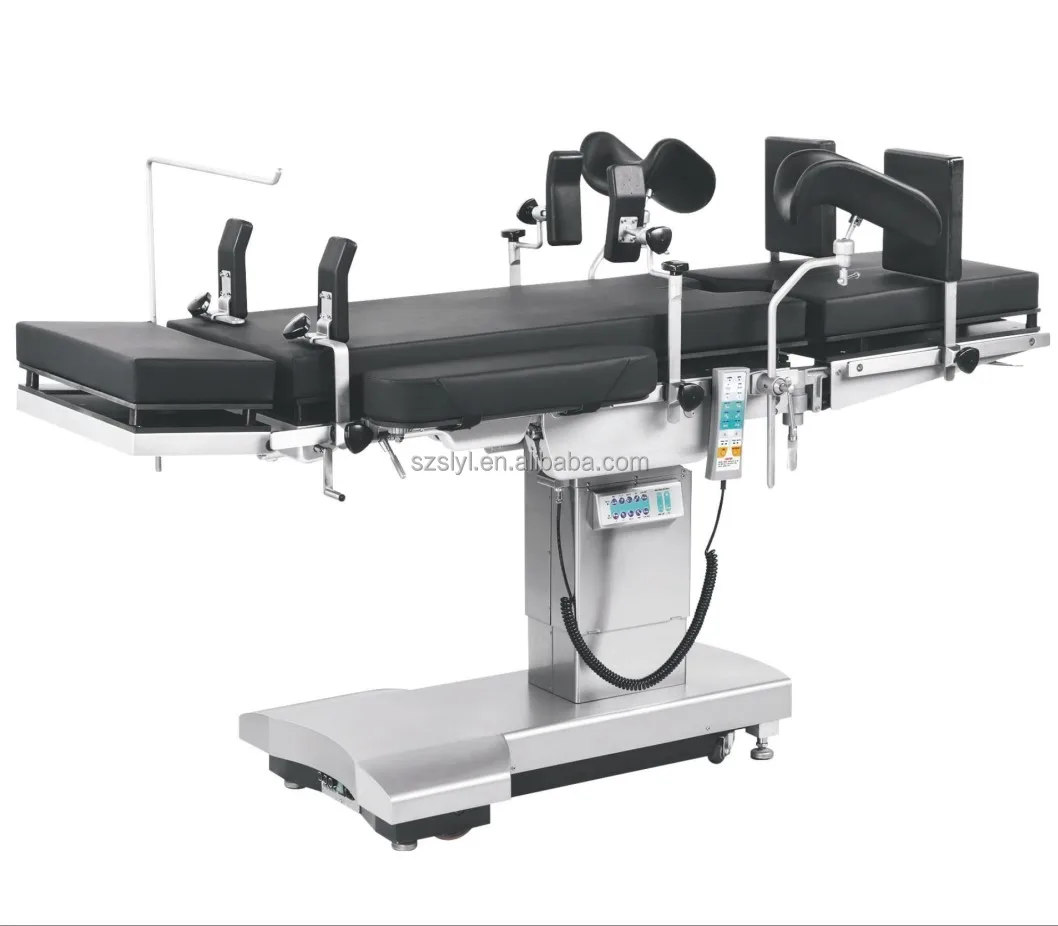

Electro-Hydraulic Operating Table
SL-ET700A
With reference to the advantages of congener products from home and aboard,can meet the demands of different position on operation.
24V battery that meets the operating demands for one week,better ensure the table
work under safe voltage.

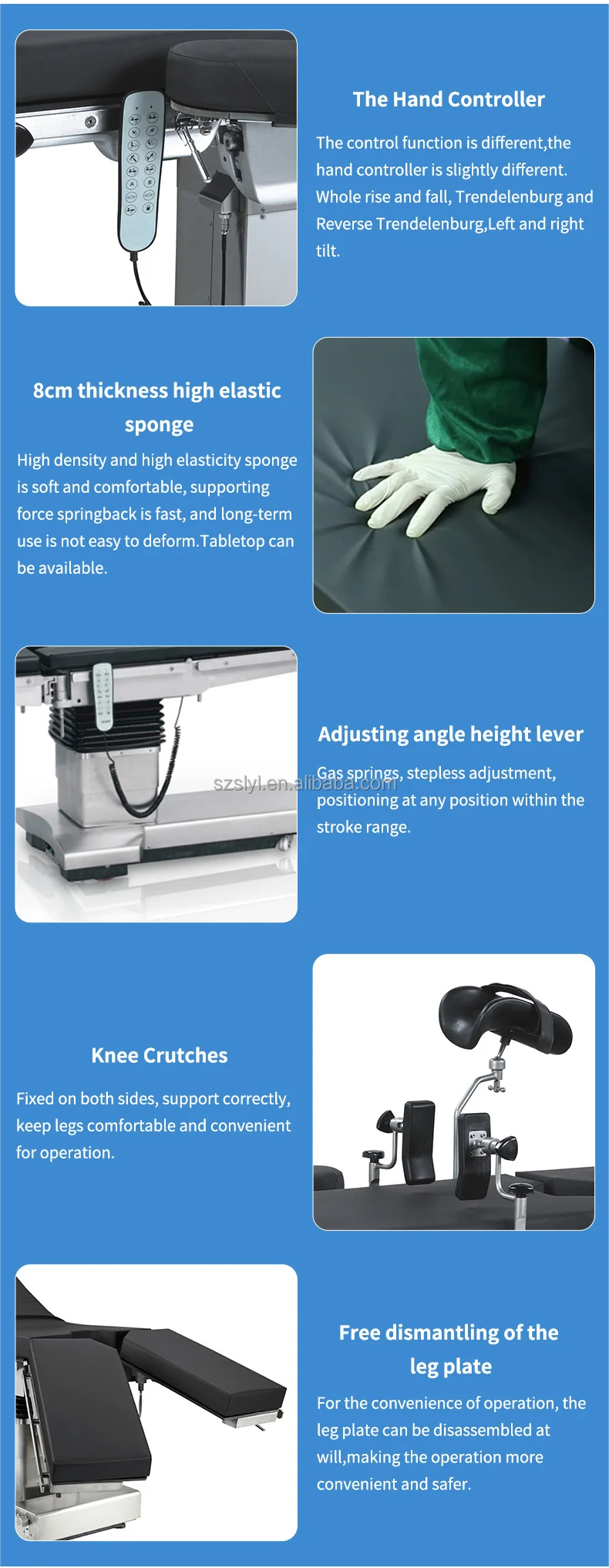

Electromotion facilitates the various adjustment of position,intellectualized reposition
enables the table a quick return to horizontal position.Automatically lockable remote :
control in case of wrong operation.
L arge- scale elevation makes it easier for C- arm fluoroscope examination.
With built-in kidney bridge ,suits for kidney operation.
Optional traction for orthopedics,head rest for Aural surgery ,extend functions of the
table .
The cover all adopted premium 304 stainless steel,the main body used cast
aluminum,anti-rust and corrosion the table top adopted phenol aldehyde photograph
board which is suitable for X-ray.
aluminum,anti-rust and corrosion the table top adopted phenol aldehyde photograph
board which is suitable for X-ray.
Key parts such as electrical pump and electromagnetic valve ,adopted imported
products from Taiwan.
Accessory:
* 1 Anaesthetic Screen
* 2 Shoulder Rest
* 2 Arm Support
* 2 Body Suppport
* 2 Knee Crutch
* 1 Matress
* 2 Shoulder Rest
* 2 Arm Support
* 2 Body Suppport
* 2 Knee Crutch
* 1 Matress
Features:
1) electro- hydraulic adjustment
2) ergonomic comfort
3) cost- effectively
4) muti-performance
5) advanced longitudinal shift

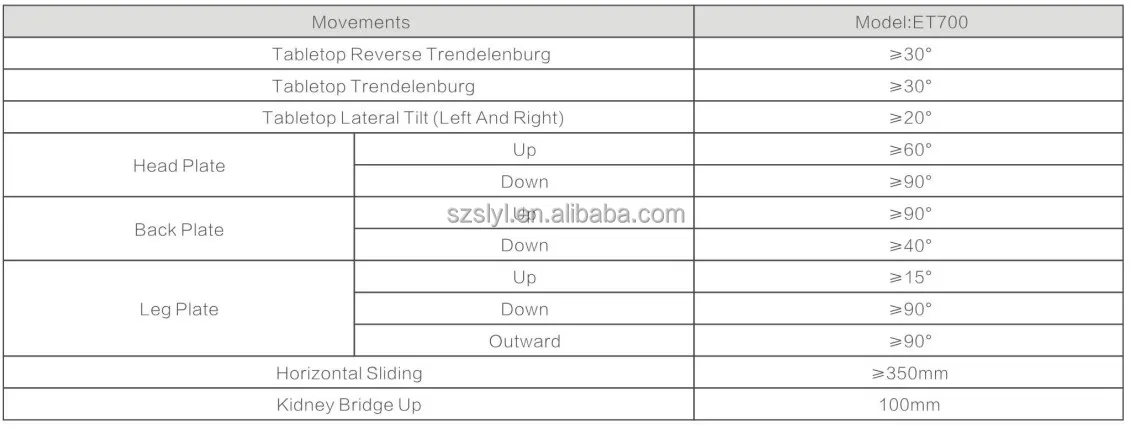

SPECIFICATION
| Lenth/width: | 1960mm/500mm |
| Elevation(up/down): | 690mm/1100mm |
| Trendelenburg: | 30° |
| Reverse Trendelenburg: | 30° |
| Lateral Tilt(left/right): | 20°/20° |
| Head Rest(up/down): | 40°/90° |
| Footplate(up/down&horizontal positioning): | 15°/90° 90° |
| Back plate(up/down): | 90°/40° |
| Longitudinal Sliding: | 350mm |
| Power | :220v,50Hz,1.0kW |
