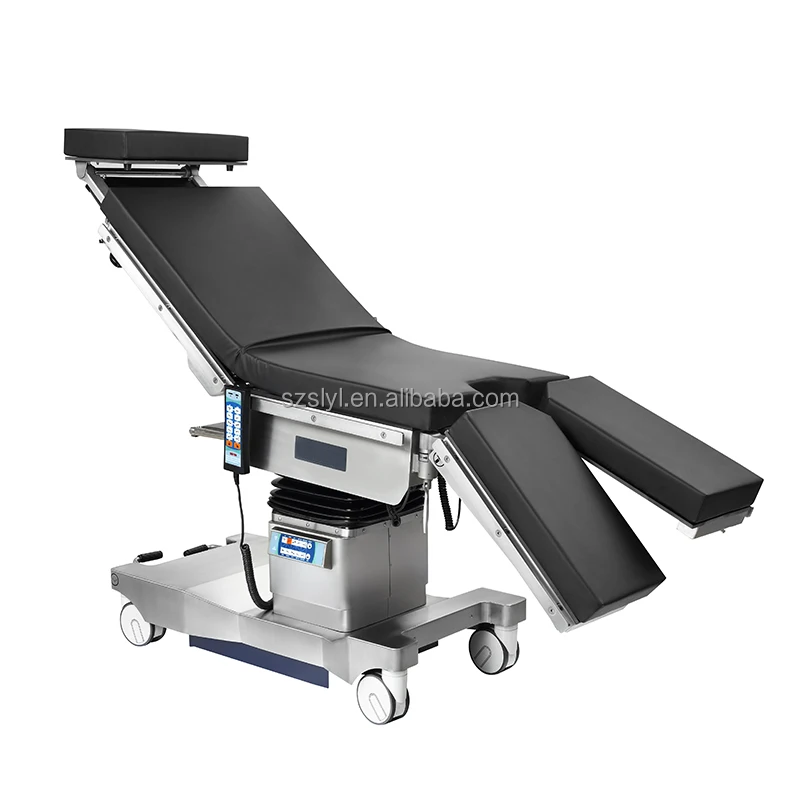

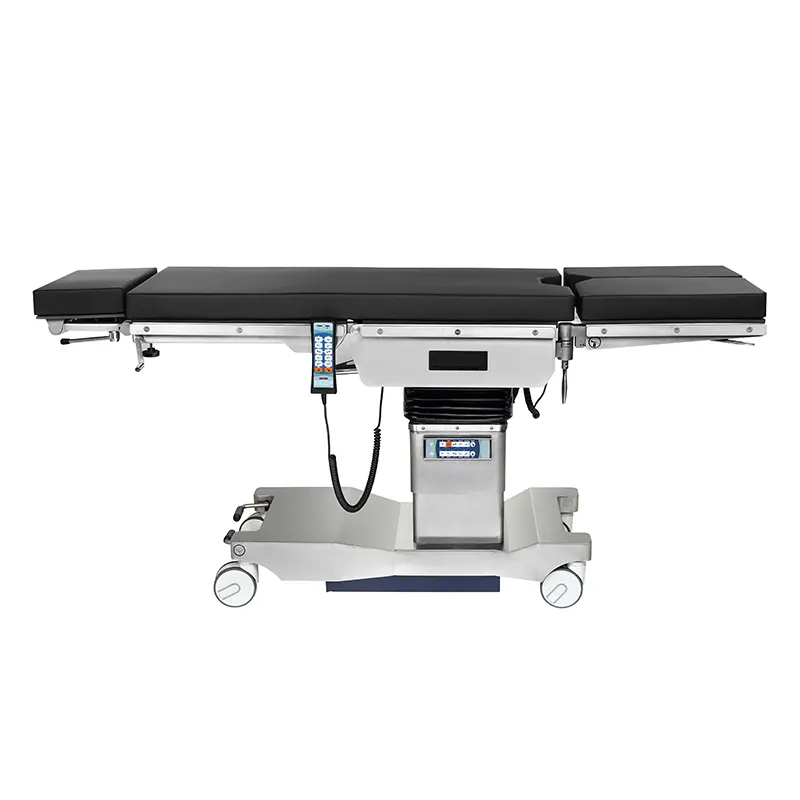

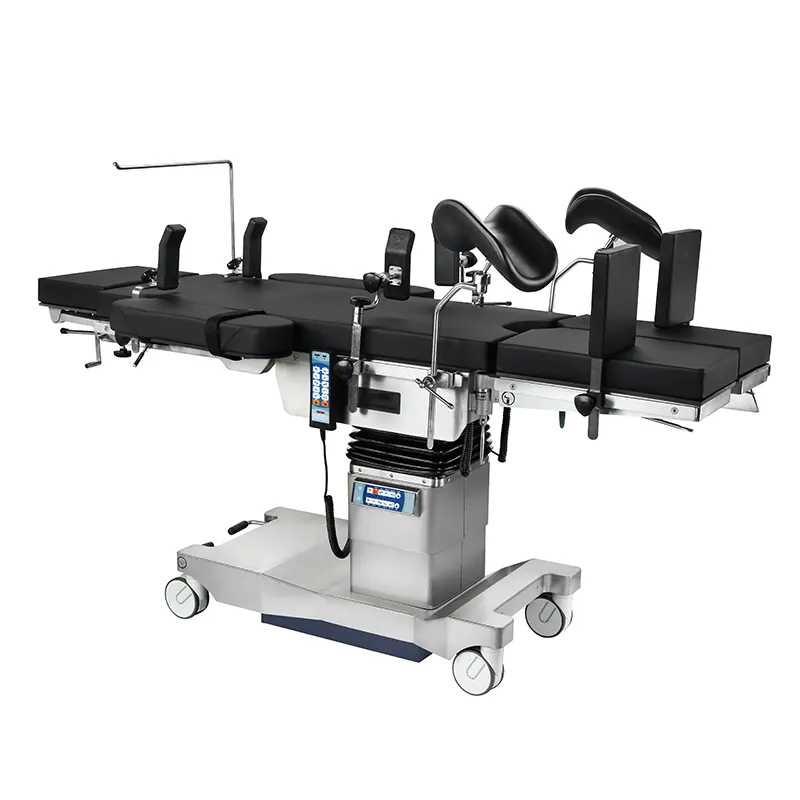

Mobile Operating Table Electrical Surgical Table
Publish time 2023-08-21 17:04
Electric Hydraulic Operating Table
| 1. Precise: | Uniform, homogeneous lighting in surface and deep cavity procedures. |
| 2. Simple: | Ergonomic, sterile operating concept allows for the simple and flexible control of all functions. |
| 3. Durable: | Almost unlimited LED life expectancy delivers tremendous reliability and minimize resources impact. |
| 4. Environmentally proactive: | low power consumptionn and durable LEDs minimize the impact on our precious resource. |
Engineered for increasingly complex surgical scenes, SL-ET500T comes with intelligent automatic control system satisfying various demands of general surgeries.
Extra wide tabletop,extreme loading system,long horizonta sliding that can be suitable for both X-ray and C- arm.
SL-ET500T is an ideal electric operating table.
Features:
Longitudinal slide up to 350mm for free access to C arm.
Extreme weight load capacity of 250kgs with highest safety and stability.
Memory pad with antistatic, waterproof design.

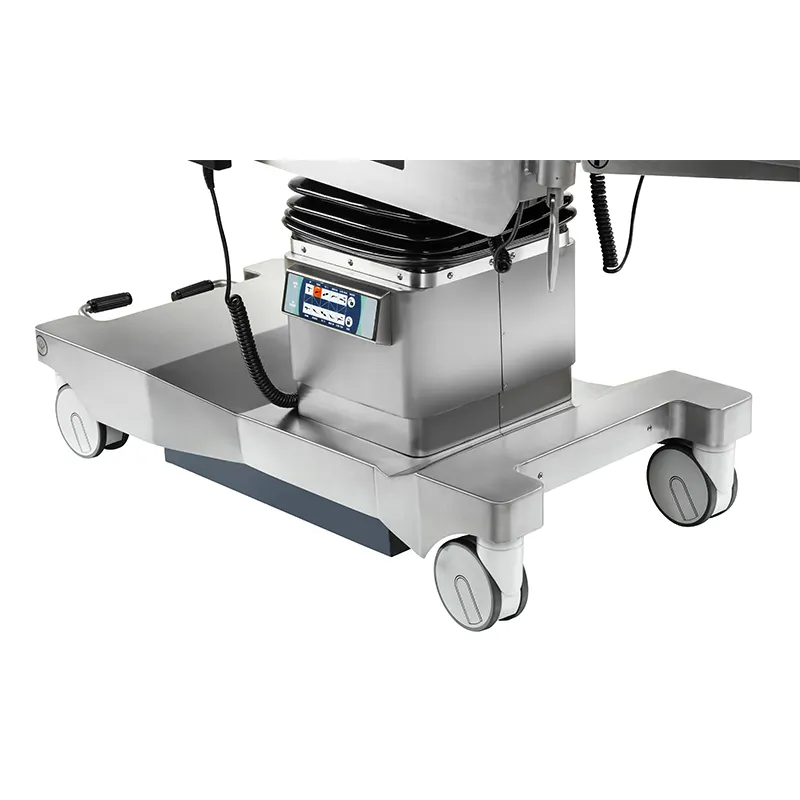

Standard override panel control makes the control safer.
Battery power for 50- 80 operations.
Longitudinal slide up to 350mm for free access to C arm.
Extreme weight load capacity of 250kgs with highest safety and stability.
Memory pad with antistatic, waterproof design.
Standard override panel control makes the control safer.
Battery power for 50- 80 operations.
Image details
SL-ET500 electric operating table is made specially to meet demand of general surgical operations.It adopts full 304 stainless steel,excellent properties on anti-rust.Tabletop is X-raying available.can be sliding for over 300mm,that meet C-arm need.
Techniccal Parameter
| Tabletop Length | 2100mm |
| Tabletop Width | 550mm |
| Elevation(down/up) | 700/1000mm |
| Trendelenburg | 25°/25° |
| Lateral Tilt(left/right) | 15%/15° |

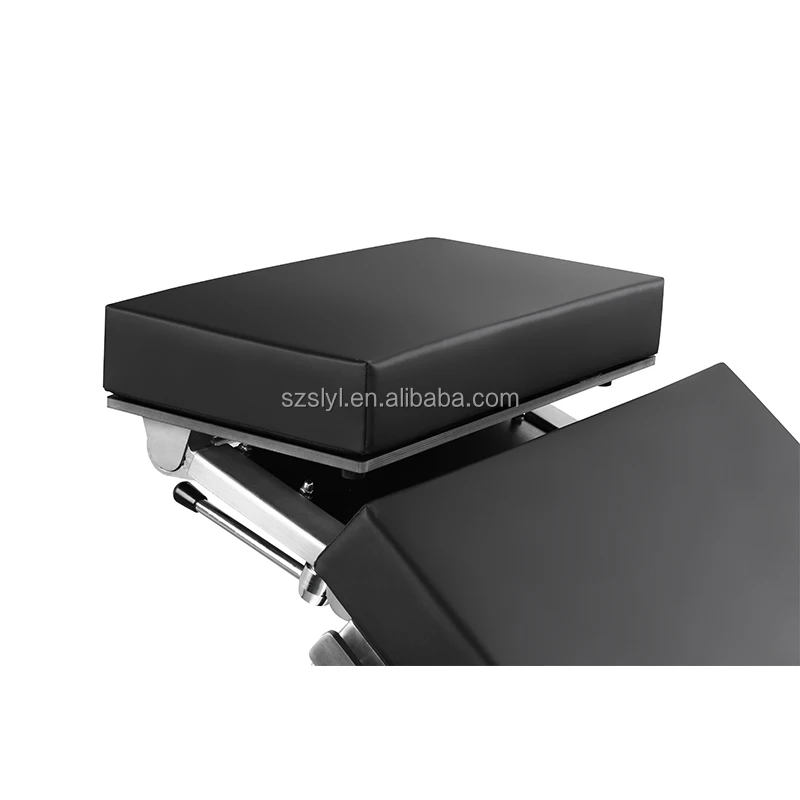

| Head Rest(up/down) | 45°/90° |
| Foot Plate(up/down/out) | 15°/90°/90° |
| Back Plate(up/down) | 85%/20° |
| Kidney Bridge | 110mm |
| Longitudinal Sliding | 350mm |
| Power | 20V 50Hz 1.0kW |
